Rear Stabilizer Bar Bush (G1917532): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains illustrations for left side components, right side components are similar.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Remove the rear shock absorber.

    Refer to: REAR SHOCK ABSORBER

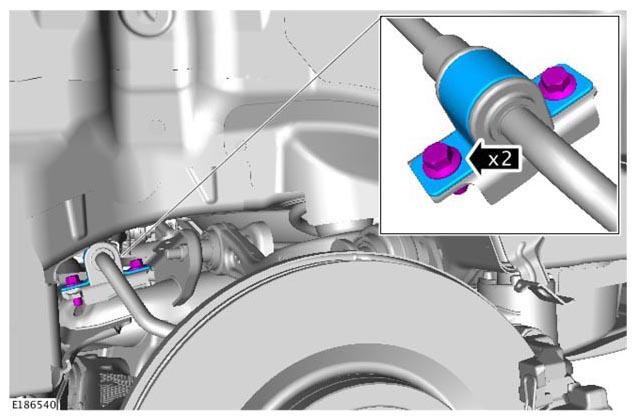

  3. G11305638Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the 2 bolts and remove the stabilizer bar bracket.

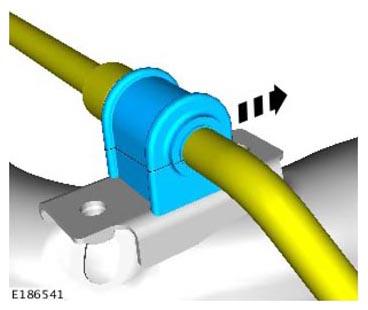

  4. G11305639Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the stabilizer bar bush.

  5. Repeat the procedure for the other side of the vehicle.
