Rear Stabilizer Bar (G1818217): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the rear subframe.
Refer to: REAR SUBFRAME - PROJECT 8

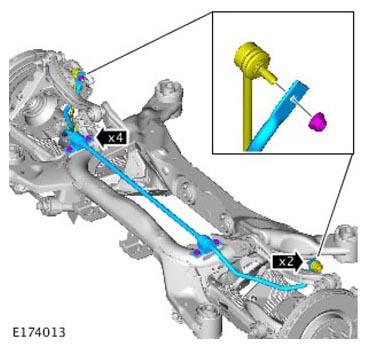

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the 4 rear stabilizer bar bracket bolts.
- Remove and discard 2 the rear stabilizer bar link nuts.
- Remove the rear stabilizer bar from the rear subframe.

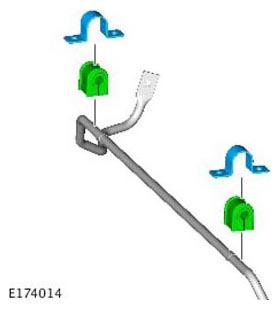

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the rear stabilizer bar brackets.
- Remove the rear stabilizer bar bushes.
