Rear Shock Absorber - Project 8 (G2258840): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: To prevent any stress being applied to the brake hose, make sure the suspension is supported before disconnecting the rear shock absorber from the lower control arm.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the wheel and tire.
Refer to: WHEEL AND TIRE - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

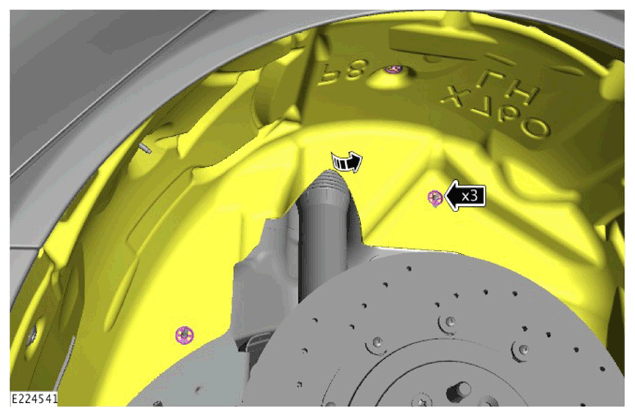

Remove the 3 retaining clips and position the arch liner in the direction illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

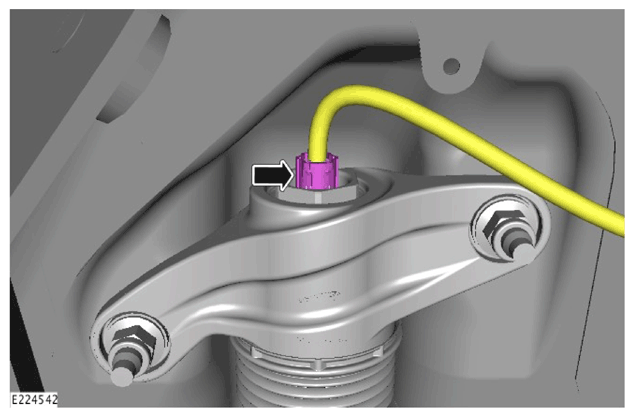

Disconnect the adaptive damper electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

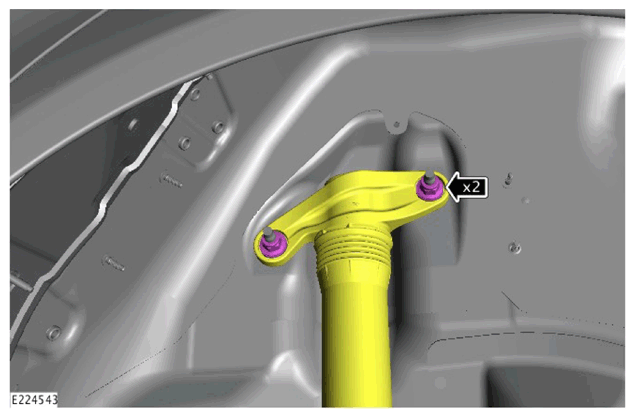

Remove and discard the 2 upper shock absorber nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the lower shock absorber nut and bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

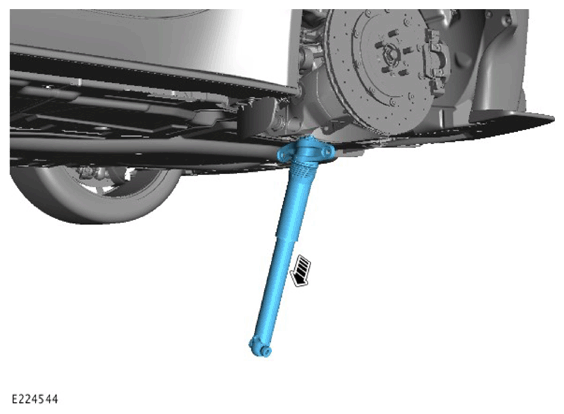

Remove the rear shock absorber.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

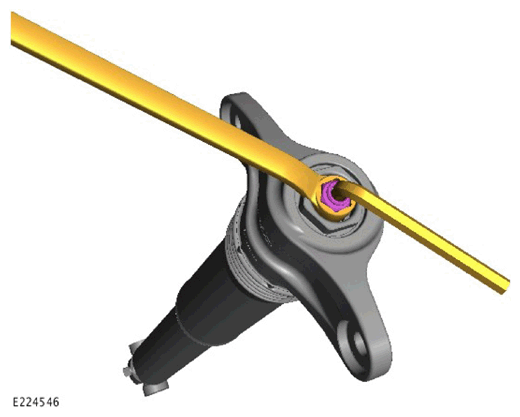

Using a suitable tool, remove the shock absorber nut.
NOTE:
- Note the position of components before removal.
- Do not disassemble further if the component is removed for access only.
- This step is not necessary if removed for access only.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

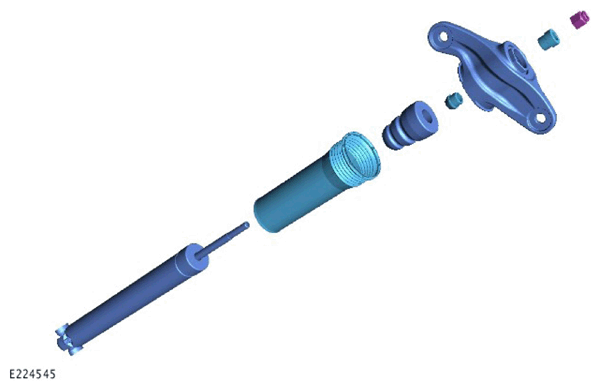

- Inspect the components and renew if damaged or worn.
- Remove the components form the shock absorber.
