Rear Shock Absorber (G1817698): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: To prevent any stress being applied to the brake hose, make sure the suspension is supported before disconnecting the rear shock absorber from the hub.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the wheel and tire.
Refer to: WHEEL AND TIRE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

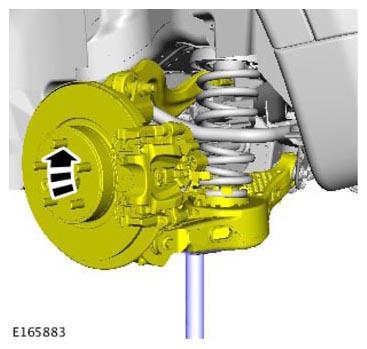

Using a suitable stand, support the lower arm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

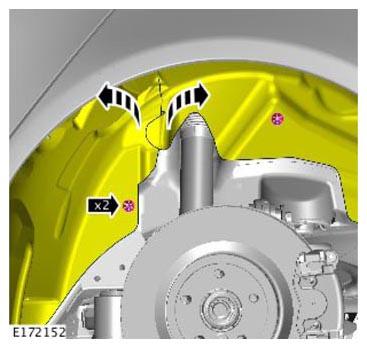

Remove the 2 retaining clips and position the arch liner as illustrated.
NOTE: Vehicles with adaptive damping.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

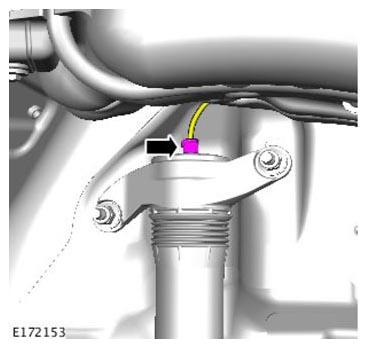

Disconnect the electrical connector from the adaptive damper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

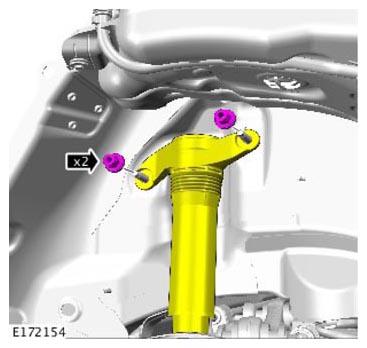

Remove and discard the upper shock absorber nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

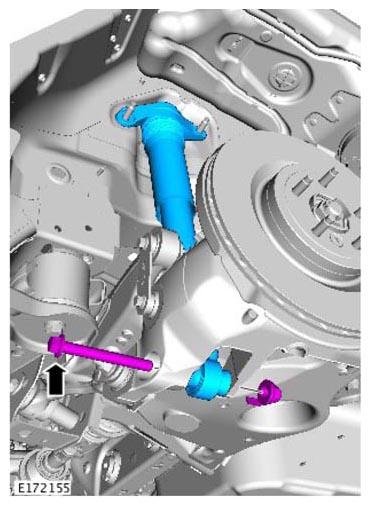

Remove and discard the lower shock absorber nut and bolt.
NOTE:
- Do not disassemble further if the component is removed for access only.
- This step is not necessary if removed for access only.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the nut.
