Rear Shock Absorber (G1817698): Installation
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: This step is only required if previously removed.
- Inspect the components and renew if damaged or worn.

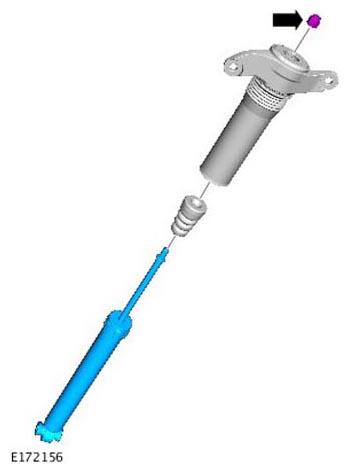

- Install the components as illustrated.
- Tighten the nut to the correct torque.
Renew Part: Shock absorber nut Quantity: 1 .
Torque
Active dampers: 27Nm
Passive dampers: 40Nm
-
CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.
- Install the shock absorber.
- Tighten the lower nut and bolt to the correct torque.
Renew Part: Shock absorber to wheel knuckle mounting nut Quantity: 1 .
Renew Part: Shock absorber to wheel knuckle mounting bolt Quantity: 1 .
Torque
Stage 1: 70Nm
Stage 2: 120°
- Install the upper shock absorber nuts and tighten to the correct torque.
Renew Part: Shock absorber upper mounting nuts Quantity: 2 .
Torque
Stage 1: 48Nm
Stage 2: 60°
-
NOTE: Vehicles with adaptive damping.
Connect the adaptive damper electrical connector.
- Reposition the wheel arch liner and install the 2 retaining clips.
- Remove the supporting stand.
- Install the wheel and tire.
Refer to: WHEEL AND TIRE
