Lower Arm - Project 8 (G2246516): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for left side components, right side components are similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the rear undershield.
Refer to: ENGINE UNDERSHIELD - PROJECT 8
Remove the rear spring.
Refer to: SPRING - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

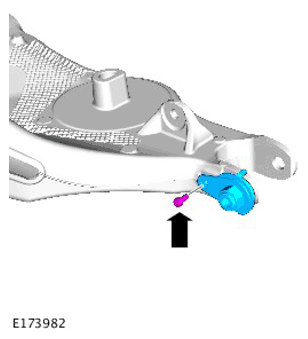

Disconnect the height sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

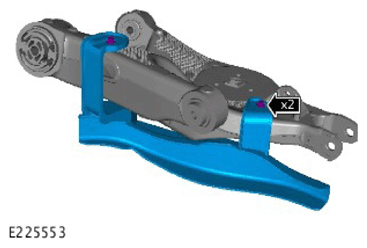

- Remove and discard the 2 integral link nuts and bolts.
- Remove the 2 integral links.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

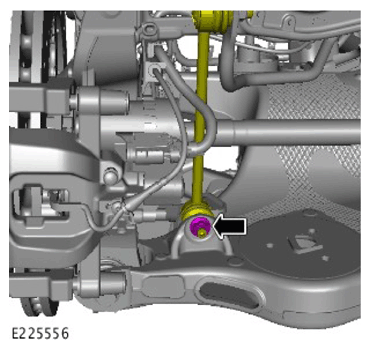

Remove and discard the stabilizer bar link nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

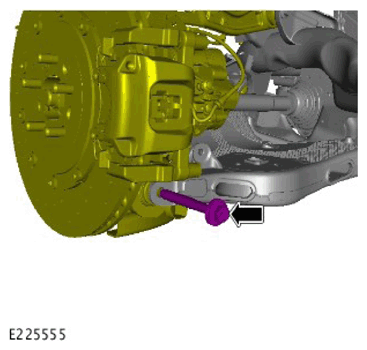

Remove the lower control arm to wheel knuckle bolt.
CAUTION: Do not support the wheel knuckle on the carbon ceramic brake disc.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

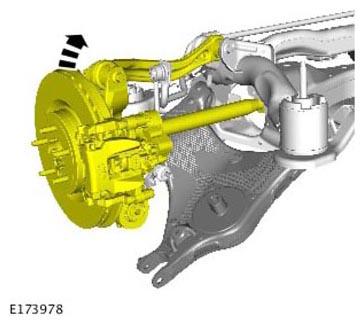

Using a suitable stand, support the wheel knuckle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

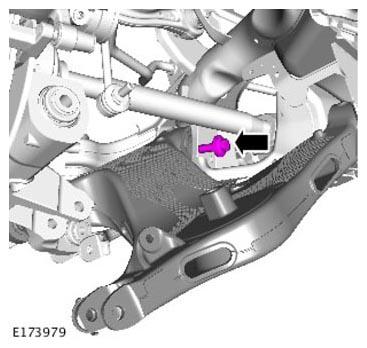

Remove and discard the lower control arm front bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

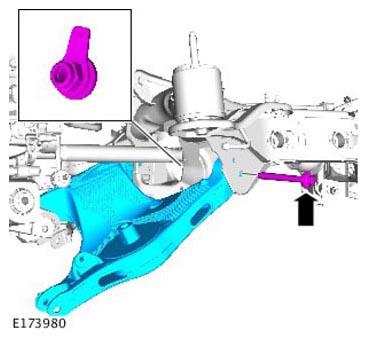

Remove and discard the lower control arm rear nut and bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

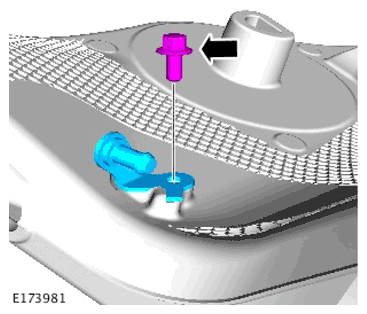

Remove the bolt and remove the height sensor bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove and discard the retained nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts and remove the air duct.
