Wheel Knuckle, Wheel Hub And Bearing Assembly
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Left side shown, right side is similar.

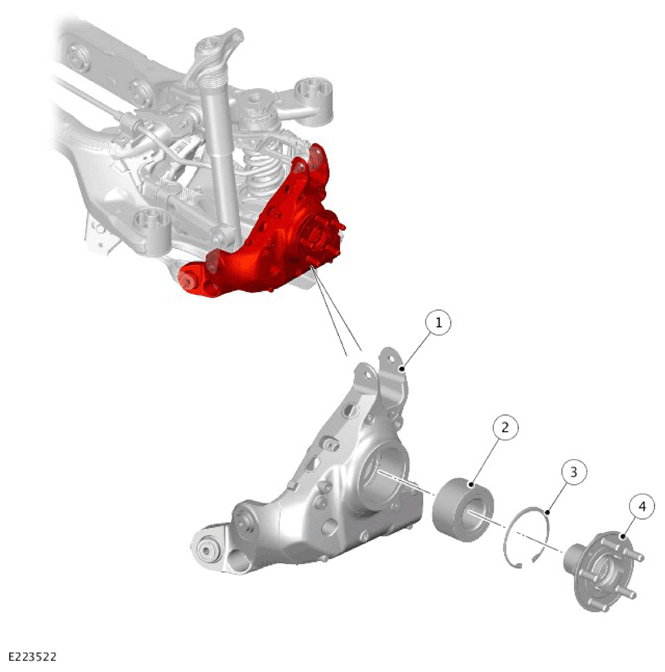

| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear wheel knuckle |
| 2 | Wheel hub bearing |
| 3 | Circlip |
| 4 | Wheel hub |
The rear wheel knuckle is made of aluminum. The wheel knuckle provides for the attachment of the rear upper and lower control arms and the tie-rod. The rear wheel knuckle also provides the locating feature for the bearing, circlip and wheel hub assembly.
A bearing is pressed into the knuckle with a circlip to secure the wheel bearing. The wheel hub is pressed into the bearing.
