Upper Control Arm
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Left side shown, right side is similar.

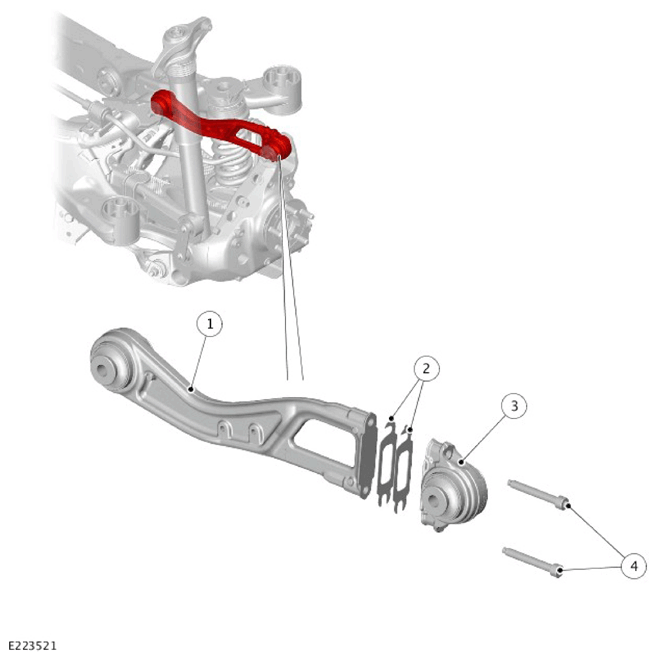

| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear upper control arm |
| 2 | Shim (2 off) |
| 3 | Bush - Upper control arm |
| 4 | Bolt - Upper control arm (2 off) |
Both ends of the upper control arm have a bush pressed into a machined bore. The inner end of the upper control arm is connected to the upper clevis of the rear subframe. The outer end of the upper control arm is connected to the wheel knuckle. The upper control arm outer end is secured to the inner end with 2 bolts. There are nominally 2 shims located between the inner and outer ends, which allows the camber adjustment of the rear wheel. The adjustment is completed by adding and removing the 1 mm (0.04 in) shims.
