Stabilizer Bar And Links
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

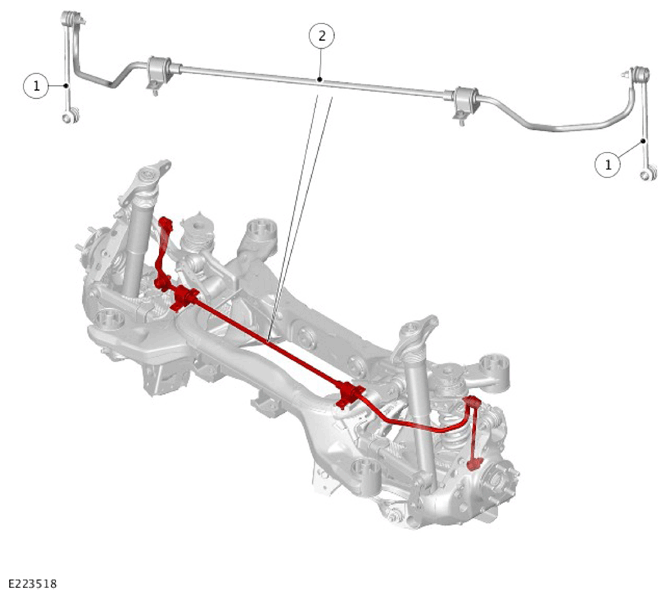

| ITEM | DESCRIPTION |
|---|---|
| 1 | Stabilizer bar links |
| 2 | Rear stabilizer bar |
The stabilizer bar is designed to control the amount of vehicle roll during articulation. The stabilizer bar is attached to the wheel knuckle with a pair of stabilizer bar links.
The stabilizer bar is attached to the subframe with bushes and mounting brackets. The pressed steel brackets locate over bushes and are attached to the longitudinal members with bolts screwed into threaded locations in the subframe.
