Rear Suspension - Project 8: Description: Spring
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

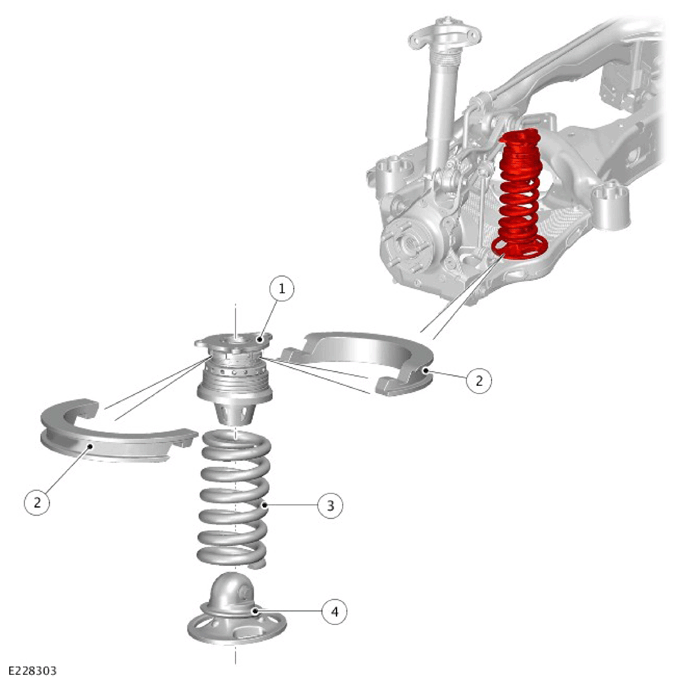

Left side shown, right side is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Spring upper mount |
| 2 | Ride height clip |
| 3 | Coil spring |
| 4 | Spring lower mount |
The rear spring assembly is unique to Project 8, which comprises the lower mount, the spring and the upper mount. The pivoting lower mount allows the alignment of the spring in rebound. The upper mount incorporates a manually height adjustable spring seat. The vehicle ride height can be set to road or track setting by adding or removing the 2 ride height clips from the upper mount.
