Shock Absorber
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Left side shown, right side is similar.

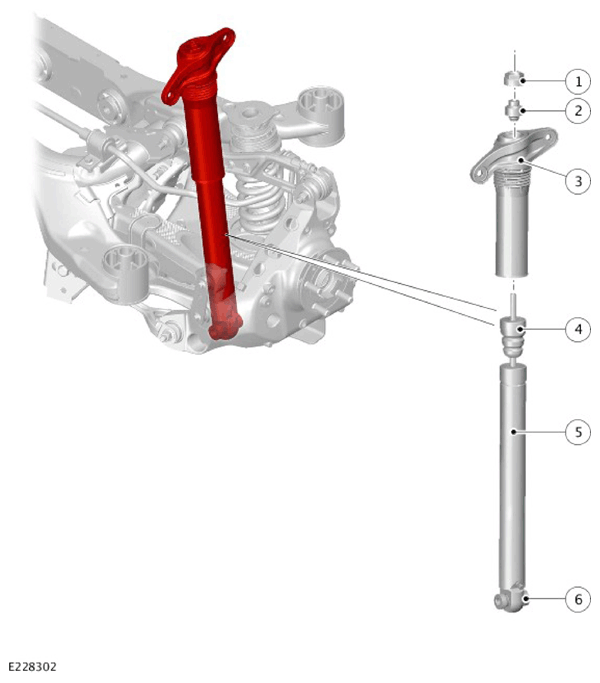

| ITEM | DESCRIPTION |
|---|---|
| 1 | Nut |
| 2 | Bearing |
| 3 | Top mount |
| 4 | Bumpstop |
| 5 | Shock absorber |
| 6 | Bearing |
The shock absorber tube is aluminum to reduce weight. The lower end of the shock absorber is mounted through a bearing and is attached to the wheel knuckle. The shock absorber top mount is secured to the vehicle body with a ball joint.
The shock absorber functions by restricting the flow of oil through internal galleries in the shock absorber piston, providing damping of undulations in the road surface.
For additional information, Refer to: VEHICLE DYNAMIC SUSPENSION - PROJECT 8
