Lower Control Arm
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

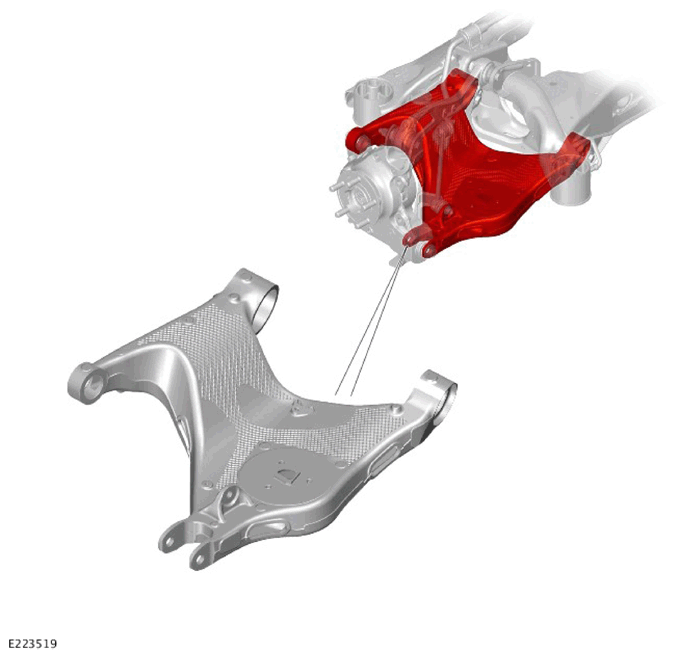

Right side shown, left side is similar.
The lower control arm is made from aluminum. The 2 cross axis joints are pressed into machined bores which provide for the attachment to the rear subframe. The lower control arm has a platform which provides attachment for the spring seat and a feature for the attachment of the stabilizer bar link. The lower control arm clevis attaches to the knuckle through a cross axis joint and to the integral link through a bush.
