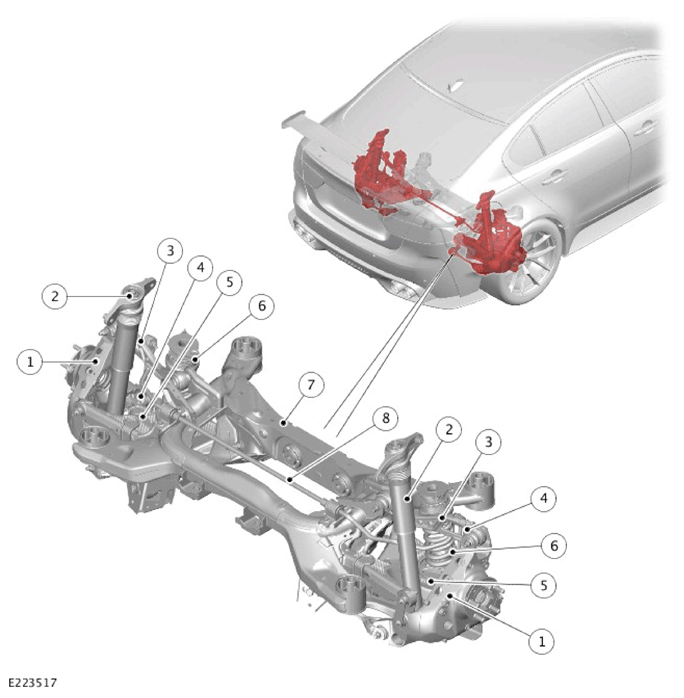

Component Location
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Wheel knuckle and wheel hub assembly |
| 2 |
Rear shock absorber |
| 3 |
Rear upper control arm |
| 4 |
Rear stabilizer bar link |
| 5 |
Rear lower control arm |
| 6 |
Rear coil spring |
| 7 |
Rear subframe |
| 8 |
Rear stabilizer bar |
