Positive Crankcase Ventilation Cap (G2370213): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Remove the engine cover.

    Refer to: ENGINE COVER - V6 S/C 3.0L PETROL

  2. Remove the cowl panel.

    Refer to: COWL PANEL

  3. Remove the supercharger.

    Refer to: SUPERCHARGER

  4. CAUTION:
    • Damaging the positive crankcase ventilation cap is unavoidable.
    • Take care not to damage the camshaft cover.

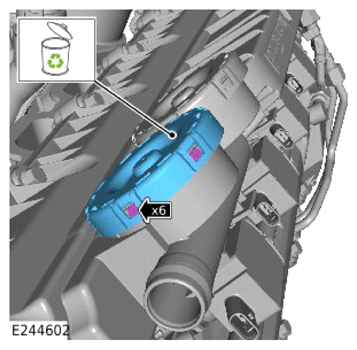

    G13889097Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the positive crankcase ventilation cap.

  5. CAUTION: The positive crankcase ventilation cap spring will be under tension, take care when removing it from the camshaft cover.
    NOTE: Note the orientation of the positive crankcase ventilation cap seal and spring prior to removal.

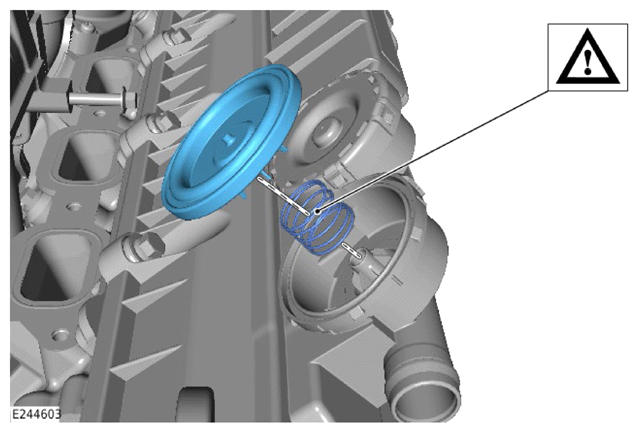

    G13889098Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the positive crankcase ventilation cap seal and spring.
    • Retain the positive crankcase ventilation spring for the installation.
  6. Repeat steps  3 and 4 for the remaining crankcase ventilation cap.
