Positive Crankcase Ventilation Cap (G2370213): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure the spring is correctly installed to positive crankcase ventilation cap.

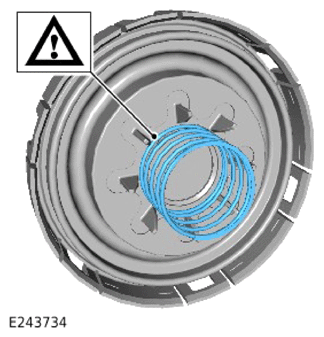

    G13889090Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the positive crankcase ventilation cap spring.

  2. CAUTION: Make sure the positive crankcase ventilation cap seal is correctly installed to the camshaft cover.

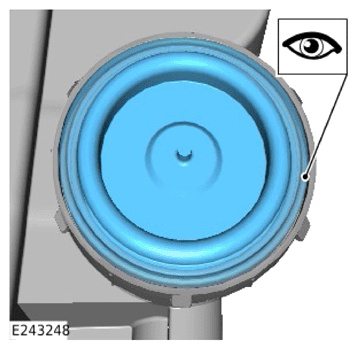

    G13889091Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the positive crankcase ventilation cap assembly.

  3. Repeat steps  1 and 2 for the remaining crankcase ventilation cap.
  4. Install the supercharger.

    Refer to: SUPERCHARGER

  5. Install the cowl panel.

    Refer to: COWL PANEL

  6. Install the engine cover.

    Refer to: ENGINE COVER - V6 S/C 3.0L PETROL
