Fuel Charging And Controls - V8 S/C 5.0L Petrol, Project 8 (G2261899): Specifications
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
- Before any work is carried out on the fuel system, ground the vehicle to earth and maintain the ground connection until the work is complete.
CAUTION:
Before disconnecting or removing components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
NOTE:
- Tighten the fuel rail high pressure fuel pump fuel line unions and fuel rail crossover pipe unions as it is instructed in the service information.
- Numbers with a green background are a single use component.
COMPONENT TORQUE LOCATIONS
COMPONENT TORQUE LOCATIONS
COMPONENT TORQUE LOCATIONS
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|

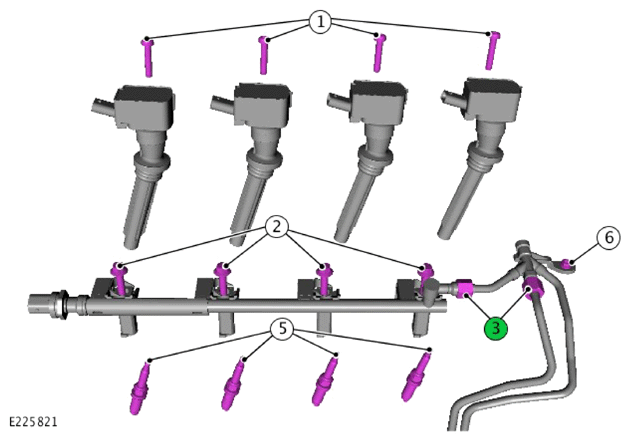

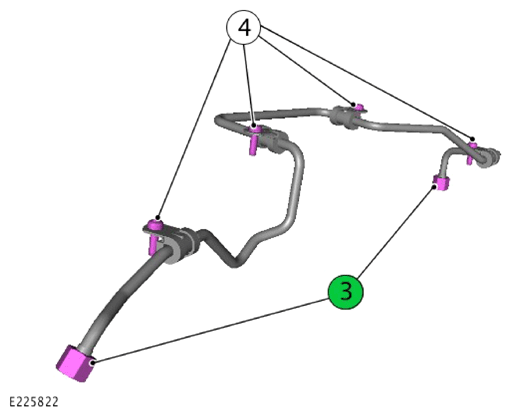

| 1 | Ignition coil-on-plugs retaining bolts | 7 | 5.1 | - |
| 2 | Fuel rail retaining bolt | 30 | 22.1 | - |
| 3 | Fuel pipe unions | 21 | 15.4 | - |
| 4 | Fuel rail crossover pipe retaining bolts | 8 | 5.9 | - |
| 5 | Spark plugs | 22 | 16.2 | - |
| 6 | Fuel rail high pressure fuel pump fuel line M5 nut | 6 | 4.4 | - |

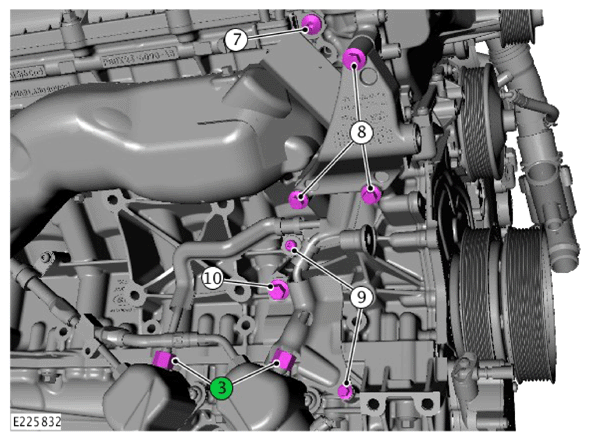

| 7 | Fuel rail high pressure fuel pump fuel line M8 bolt | 25 | 18.4 | - |
| 8 | Accessory drive belt idler pulley bracket retaining bolts | 25 | 18.4 | - |
| 9 | Fuel rail high pressure fuel pump fuel line M6 bolt | 11 | 8.1 | - |
| 9 | Fuel rail high-pressure fuel pump fuel line shield M6 bolt | 11 | 8.1 | - |
| 10 | Fuel rail high pressure fuel pump fuel line shield M10 bolt | 29 | 21.3 | - |

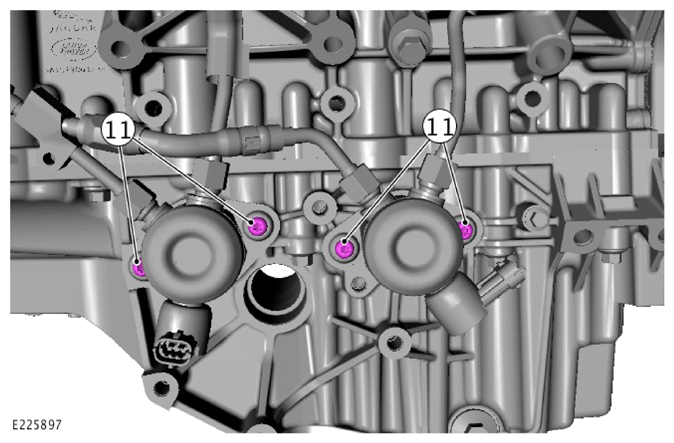

| 11 | Fuel rail high pressure fuel pump torx bolts | 11 | 8.1 | - |

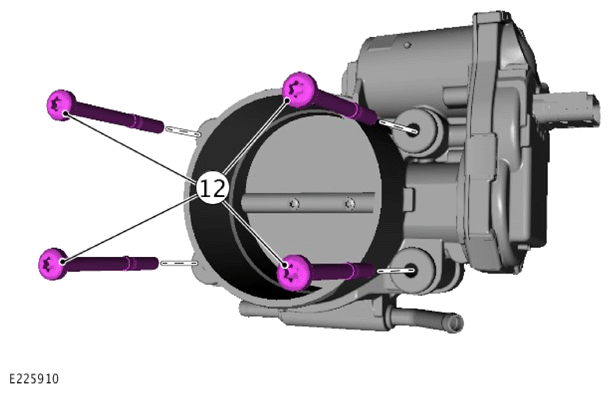

| 12 | Throttle body retaining bolts | 10 | 7.3 |
