Throttle Body (G2248486): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Remove the air filter outlet pipe T-connector.
Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

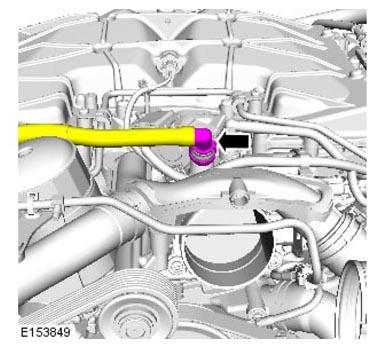

Disconnect the breather pipe from the supercharger.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

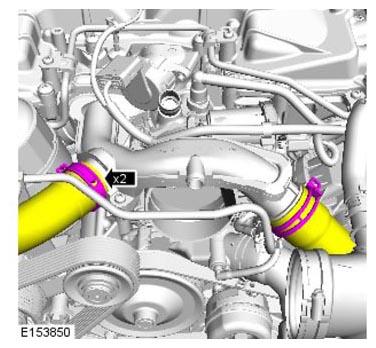

- Release the 2 hose clamps.
- Disconnect the 2 coolant hoses from the coolant pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the clip and position the wiring harness to one side.
- Remove the 2 bolts and coolant pipe.
- Remove and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

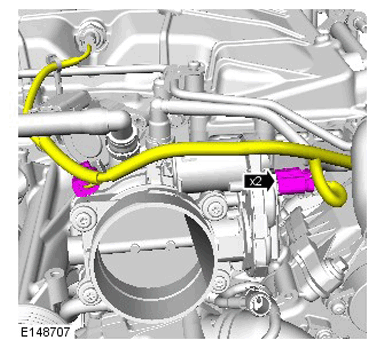

Disconnect the 2 electrical connectors from the throttle body and supercharger.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 4 bolts from the throttle body.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

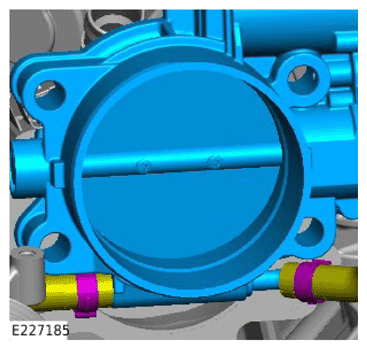

Disconnect the 2 coolant hoses and remove the throttle body.
Remove and discard the throttle body gasket.
