High Pressure Fuel Pump 1 - RWD (G2244114): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Lubricate the high-pressure fuel pump bucket with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.

NOTE: Lubricate the high-pressure fuel pump O-ring seal with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 11Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

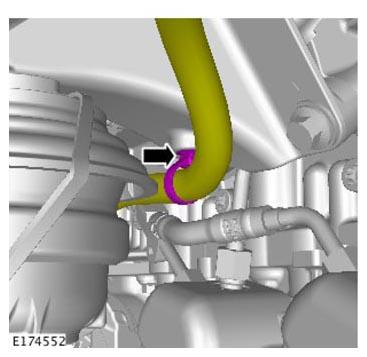

CAUTION:
- Install new high-pressure fuel supply lines.
- Lubricate only the union threads with clean engine oil.
- Only tighten the bolts and unions finger tight at this stage.
NOTE: Remove and discard the blanking caps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Fuel rail supply pipe(s) Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

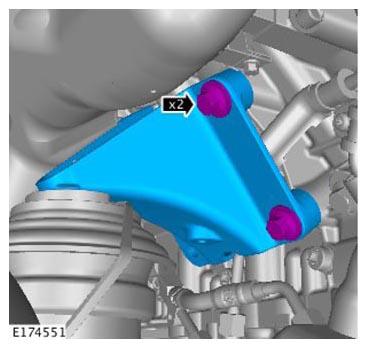

- Torque
Unions (1): 21Nm

M6 bolt (2): 11Nm

M8 bolt (3): 25Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 21Nm
CAUTION: Only tighten the unions finger tight at this stage.

NOTE: Remove and discard the blanking caps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 21Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

M10: 29Nm

M6: 11Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Wiring harnesses shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 48Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 48Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25Nm
CAUTION: Do not install the air deflector at this stage.

Refer to: GENERATOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 48Nm
NOTE:
- Install the nut and unions finger tight before final tightening.
- Remove and discard the blanking caps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

Unions: 21Nm

M5 nut: 6Nm
CAUTION: This fuel pipe can be re-used, inspect for signs of damage. Renew if necessary.

NOTE: Remove and discard the blanking caps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

Unions: 21Nm

M6: 8Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 21Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Remove and discard the blanking caps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Remove and discard the blanking caps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: RIGHT AIR FILTER HOUSING
Connect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
Refer to: ENGINE UNDERSHIELD - PROJECT 8
