Fuel Injectors (G2244109): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the new O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a special tool, install new Teflon™ seals on the lower tips of the fuel injectors.

Special Tool(s): 310-198
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the special tool, re-shape the Teflon™ seals.

Special Tool(s): 310-199
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the new fuel injector spring clamp.
CAUTION:
- Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector.
- When installing the fuel injectors, make sure that the Teflon™ seal is clean and free of foreign material and lubricant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 8 new fuel injectors.
CAUTION: If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.

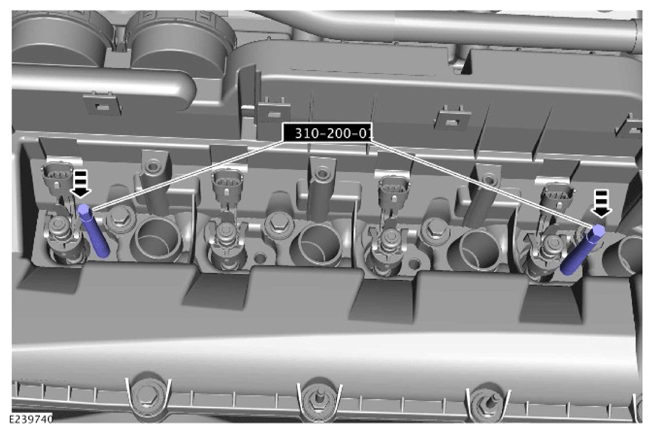

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool as shown.

Special Tool(s): 310-200-02
CAUTION:
- If new fuel injectors are installed, a new fuel injector clamp must be installed.
- Make sure that the fuel injector is aligned and installed into the fuel rail correctly, as noted in the removal step.
NOTE: Lubricate the fuel injector O-ring seals with clean engine oil.

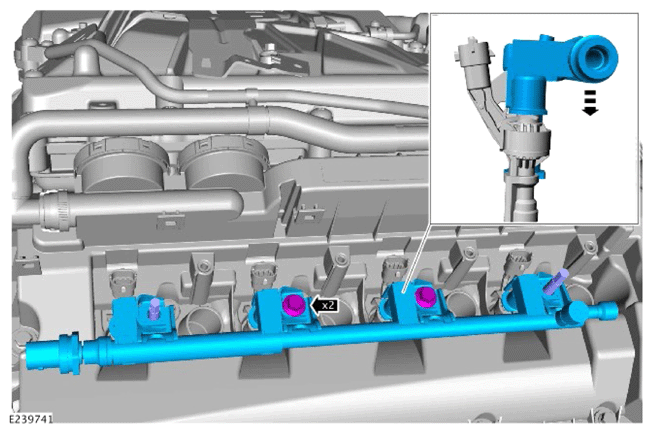

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the fuel rail.
- Install and alternately tighten the 2 bolts 1 half turn at a time until the required torque is achieved.
  Torque : 20Nm
- Repeat process to the other side.

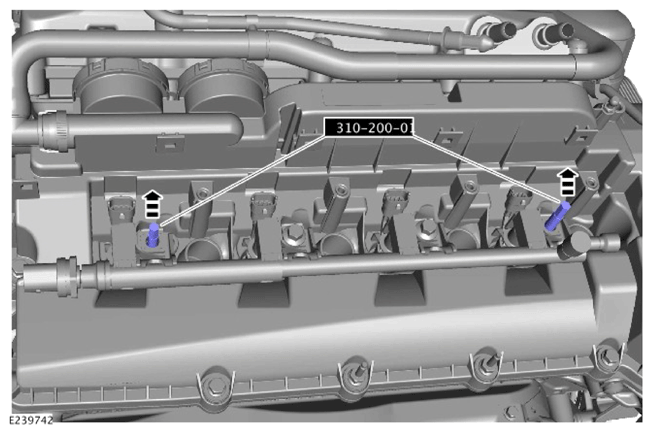

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): 310-200-02

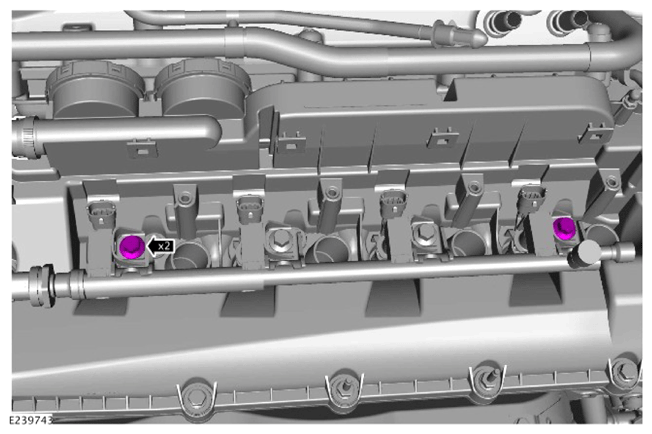

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and alternately tighten the 2 bolts 1 half turn at a time until the required torque is achieved.

Torque : 20Nm

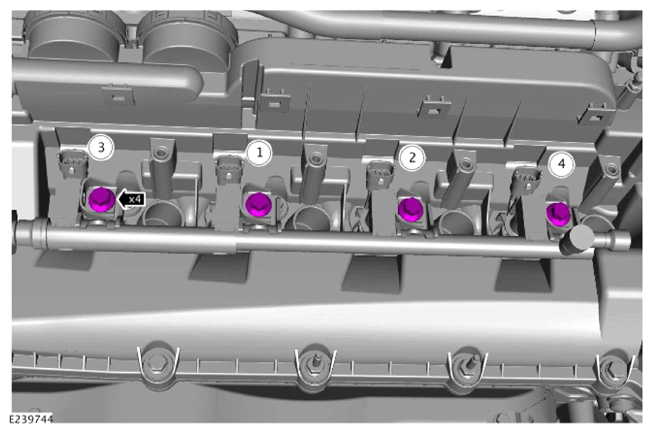

NOTE: Tighten the bolts in the indicated sequence.

Fig 1: Fuel Rail Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fully tighten the 8 fuel rail bolts.

Torque : 30Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the 8 ignition coils.
- Install and tighten the 8 bolts.
  Torque : 8Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the 8 ignition coil electrical connectors.
- Connect the 8 fuel injector electrical connectors.
CAUTION: Lubricate only the union threads with clean engine oil.
NOTE:
- Engine shown removed for better clarity.
- Install the bolt and unions finger tight before final tightening.
- Remove and discard the blanking caps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the new fuel line assembly, tighten the fuel line unions finger tight.
- Install and tighten the 2 bolts.
- Install and tighten the nut.
NOTE: Engine shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Tighten the fuel line assembly unions (1).
  Torque : 21Nm
- Tighten the fuel line assembly M6 bolt (2).
  Torque : 11Nm
- Tighten the fuel line assembly M8 bolt (3).
  Torque : 25Nm
- Tighten the fuel line assembly M5 nut (4).
  Torque : 6Nm
NOTE: Engine shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the idler pulley.

Torque : 21Nm
Install the generator.
Refer to: GENERATOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Attach the accessory drive belt.
NOTE: Engine shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the heatshield.
- Install and tighten the 2 bolts.
  Torque

  Heatshield M10 bolt: 29Nm

  Heatshield M6 bolt: 11Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the 2 electrical connectors.
- Attach the retaining clips.
Install the engine undershield.
Refer to: ENGINE UNDERSHIELD - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Attach the retaining clip.
CAUTION: Lubricate only the union threads with clean engine oil.

NOTE: Remove and discard the blanking caps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the new fuel line.
- Tighten the 2 fuel line unions.
  Torque : 21Nm
- Tighten the 4 bolts.
  Torque : 8Nm
Install the air filter outlet pipe T-connector.
Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the breather pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the Noise, Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the engine oil filler cap.
- Install the NVH material.
- Install the oil filler cap.
- Connect the pipe connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the coolant hoses.
- Install the clip.
- Repeat step for other side.
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Fill the coolant system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
