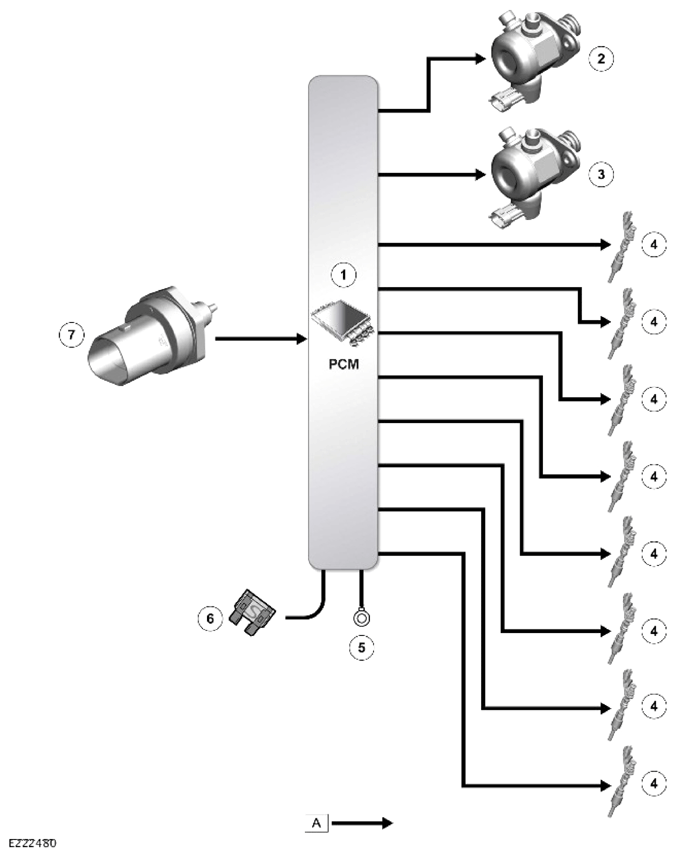

Control Diagram
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED.
| ITEM |
DESCRIPTION |
| 1 |
Powertrain Control Module (PCM) |
| 2 |
Front High Pressure (HP) fuel pump - 1 |
| 3 |
Rear HP fuel pump - 2 |
| 4 |
Fuel injector (8 off) |
| 5 |
Ground |
| 6 |
Supply |
| 7 |
Fuel Rail Pressure and Temperature (FRPT) sensor |
