Fuel Injectors

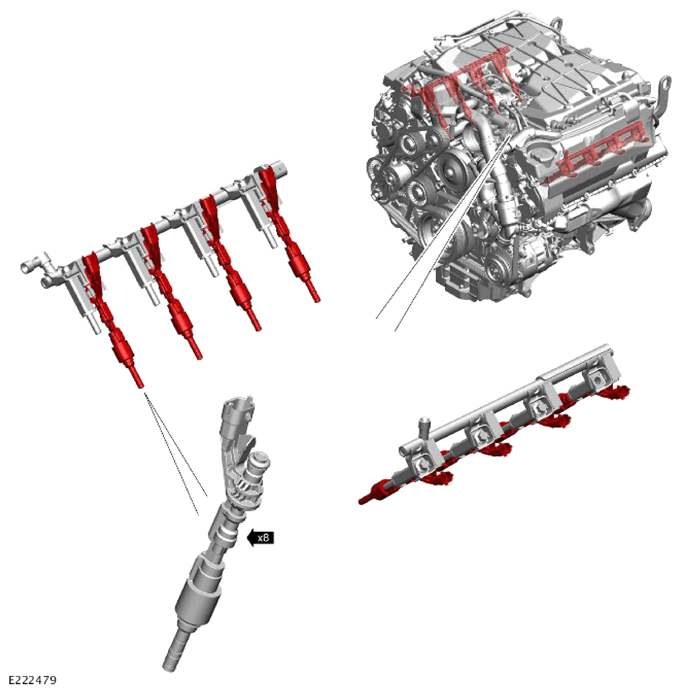

The fuel injectors spray fuel from the fuel rail directly into the combustion chambers. The fuel injectors are installed close to the center of the combustion chambers, between the inlet and exhaust valves and next to the spark plug.
The fuel injectors are a push fit in the fuel rails and the cylinder heads. On each fuel injector, an O-ring seals the head of the fuel injector in the fuel rail. A Teflon ring seals the nozzle of the fuel injector in the cylinder head.
Each fuel injector contains a solenoid operated needle valve, which opens when the solenoid winding is energized. While the needle valve is open, fuel is sprayed into the combustion chamber. The solenoid winding is connected to a power feed and a ground from the Powertrain Control Module (PCM), which operates the fuel injectors with a 2 stage power supply. Initially the PCM supplies the fuel injectors with 65V, then once the boost current reaches 11A the power supply is switched to startup battery voltage. The PCM meters the amount of fuel injected into the combustion chambers by adjusting the time that the solenoid winding is energized.
There are 6 holes around the tip of the nozzle through which the fuel is sprayed. Fuel is directed below the spark plug through 2 holes. The other 4 holes direct fuel around the remainder of the combustion chamber.
If a fuel injector fails, the engine will suffer from unstable idle speed, poor Noise, Vibration and Harshness (NVH) and poor emissions performance.
