Torque Specifications
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

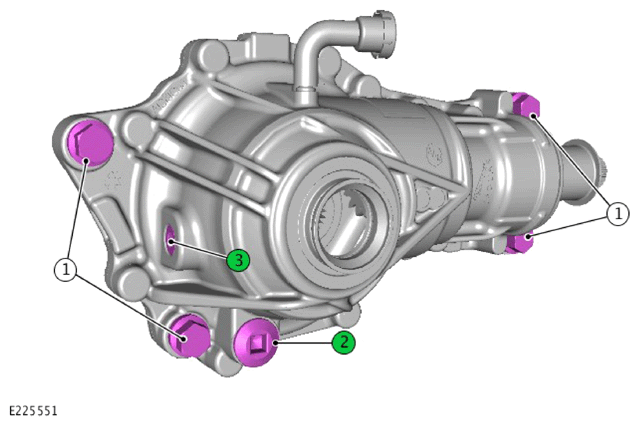

COMPONENT TORQUE LOCATIONS
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATION
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 1 |
Differential casing bolts |
115 |
84.8 |
- |
| 2 |
Differential drain plug* |
32 |
23.6 |
- |
| 3 |
Differential filler plug * |
32 |
23.6 |
- |
