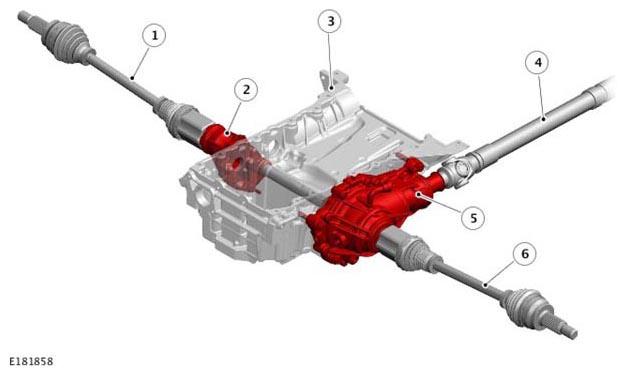

Component Location
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Right halfshaft |
| 2 |
Right halfshaft support bracket |
| 3 |
Engine oil pan |
| 4 |
Front driveshaft |
| 5 |
Front differential assembly |
| 6 |
Left halfshaft |
