Torque Specifications
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

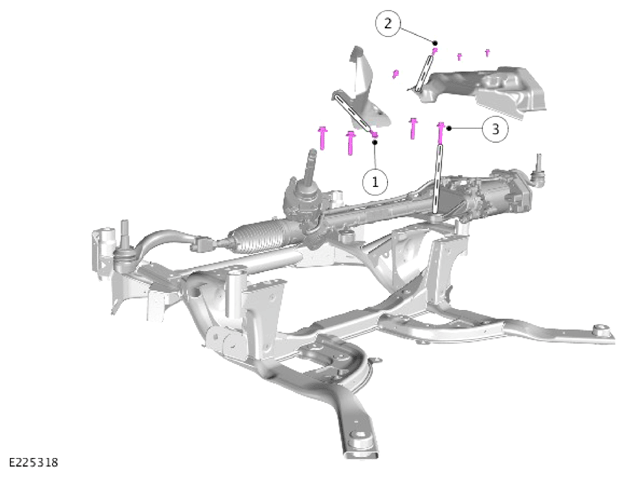

COMPONENT TORQUE LOCATION
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATION
| |
DESCRIPTION |
NM |
LB-FT |
| 1 |
Steering gear heatshield bolts - Driver side |
10 |
- |
7 |
- |
| 2 |
Steering gear heatshield bolts - Passenger side |
10 |
- |
7 |
- |
| 3 |
Steering gear to front subframe bolts |
Stage 1: 30 |
Stage 2: 60° |
22 |
Stage 2: 60° |
