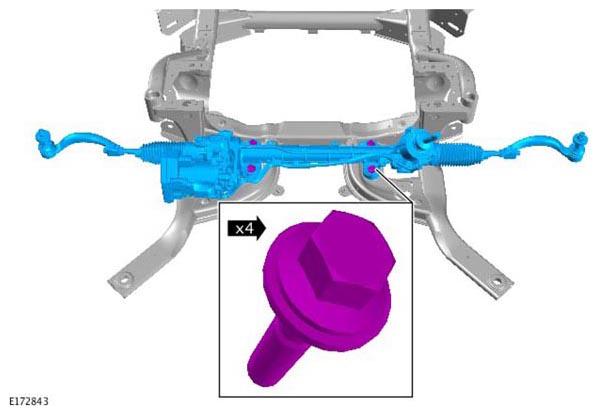

Steering Gear (G1817750): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Right hand drive shown, left hand drive similar.
-
CAUTION: Make sure that the steering column lock actuator is not engaged and in the service position. Failure to follow this instruction will make installation of the steering system impossible and may result in damage to the vehicle.
Refer to: STEERING COLUMN SERVICE POSITION
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: LIFTING
- Refer to: FRONT SUBFRAME - INGENIUM I4 2.0L DIESEL
Refer to: FRONT SUBFRAME - V6 S/C 3.0L PETROL
