Steering Gear (G1817750): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

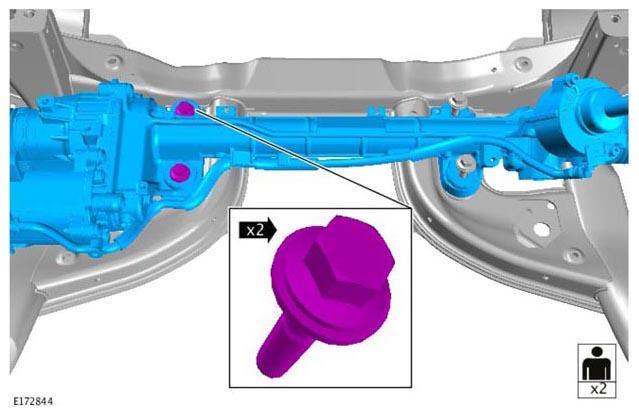

NOTE:
- Install but do not fully tighten fixings at this stage.
- Tighten bolts simultaneously but do not torque at this stage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

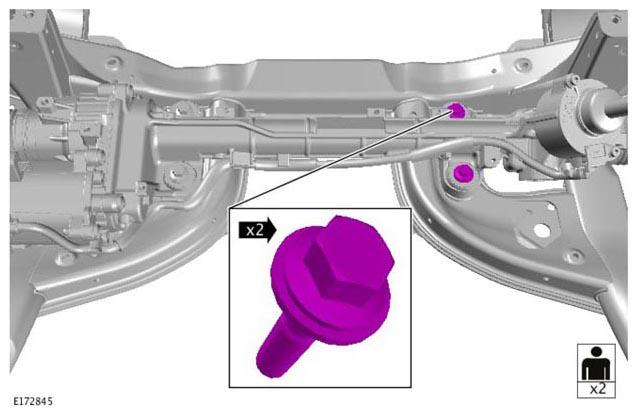

NOTE:
- Install but do not fully tighten fixings at this stage.
- Tighten bolts simultaneously but do not torque at this stage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

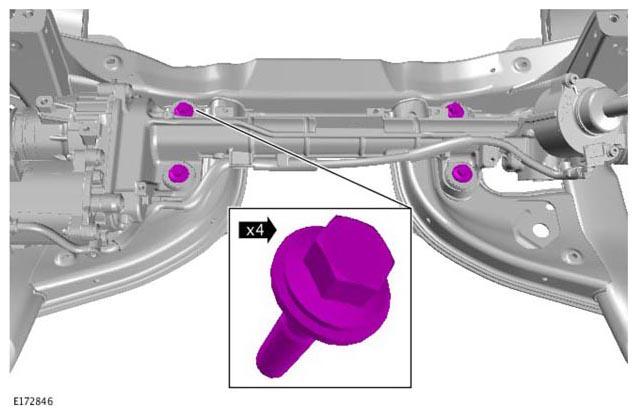

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

Stage 1: 30Nm

Stage 2: 60°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

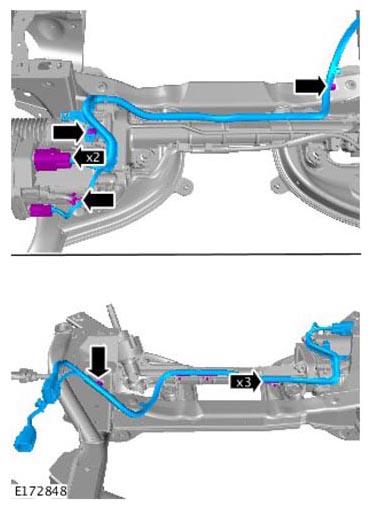

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10Nm

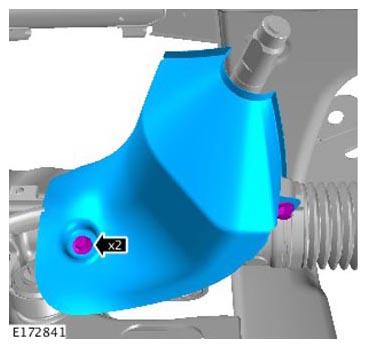

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10Nm
Refer to: FRONT SUBFRAME - INGENIUM I4 2.0L DIESEL
Refer to: FRONT SUBFRAME - V6 S/C 3.0L PETROL
NOTE: Configure the component using Jaguar approved diagnostic equipment.
NOTE: Using Jaguar Land Rover approved equipment, check and if necessary adjust the wheel alignment. SRO must be claimed separately.

Refer to: WHEEL ALIGNMENT
