Electric Power Steering Gear Accident Damage Check

The example below shows a good steering gear in central position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Bent Steering Gear

Below are some examples of damage that would not be accepted under the terms of the Jaguar Land Rover warranty agreement. Please note: these are examples only and do not represent all warrantable/non warrantable customer concerns.

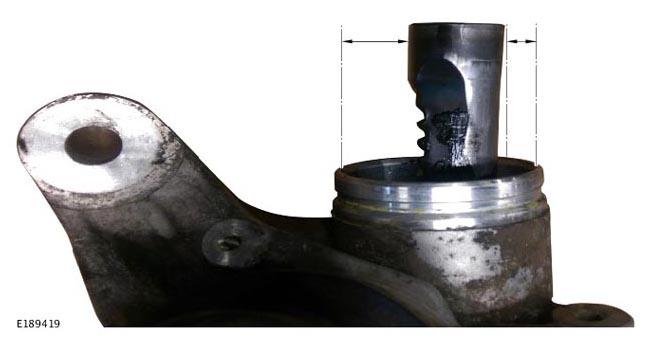

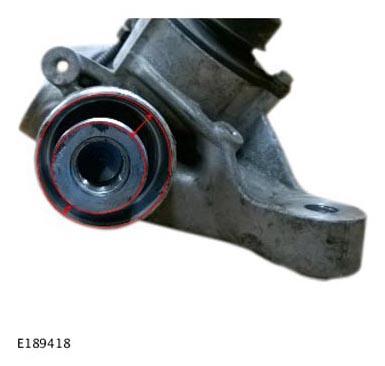

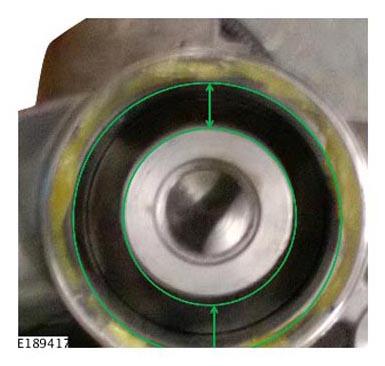

Check the differences between the distances at point A and B. Check if the rack is central and not rubbing on the end stop damper.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

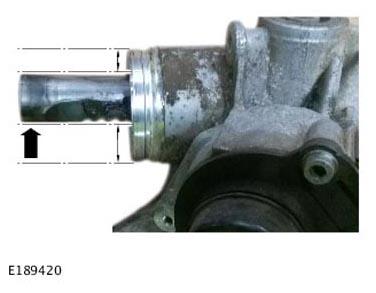

The rack clearly shows that it is not centralized meaning it is a bent steering gear issue.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The rack is not centralized to the gear housing meaning it is a bent steering gear issue.

Sign of Recent Repair

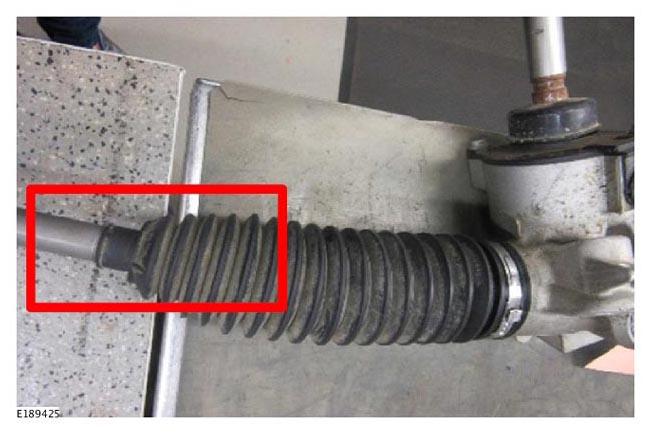

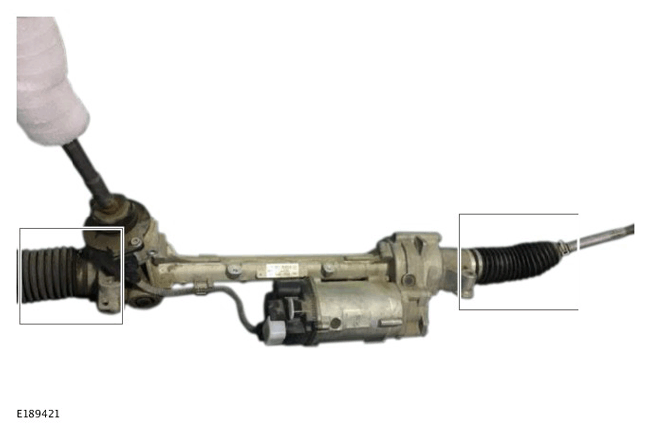

Check if the tie rod ends were recently changed. Visually inspect if the conditions of the boot are the same (dirty or clean).

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

See the difference between the boots highlighted in yellow and in red. This will tell you if a tie rod has been replaced before in which case you can assume accident damage.

Water/Debris Damage

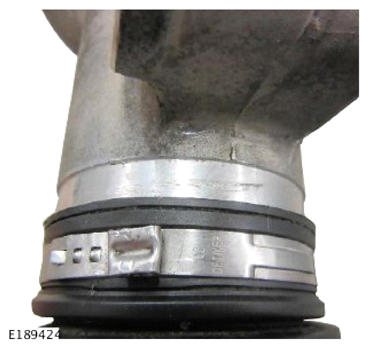

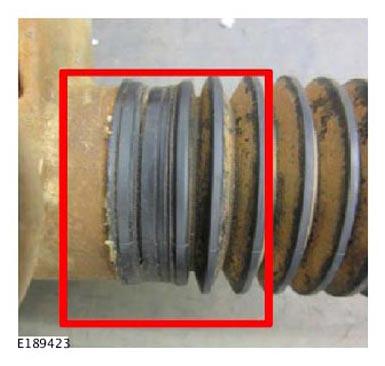

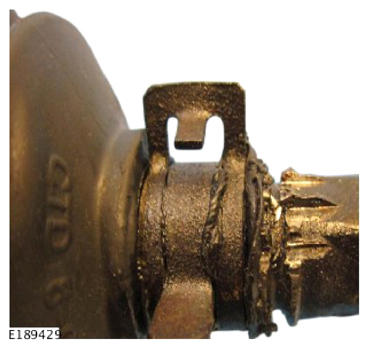

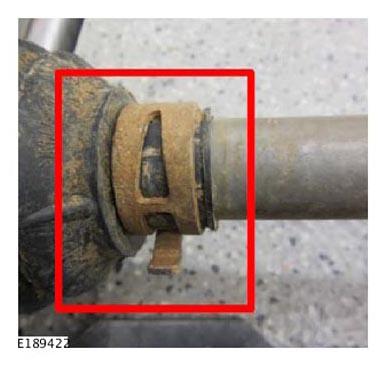

Check if boot clips are in position and they were not recently disturbed or moved. Check if clips are the correct type.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

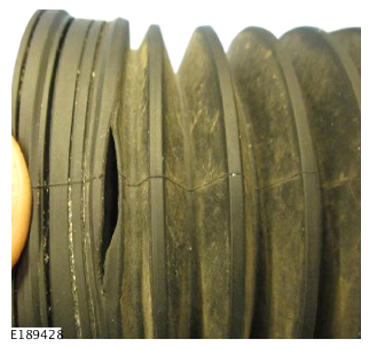

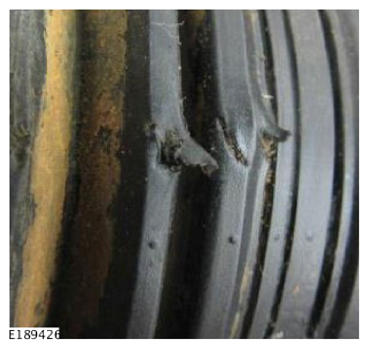

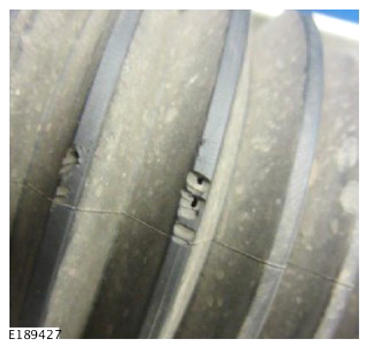

Check for damages and pin holes on the boots.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

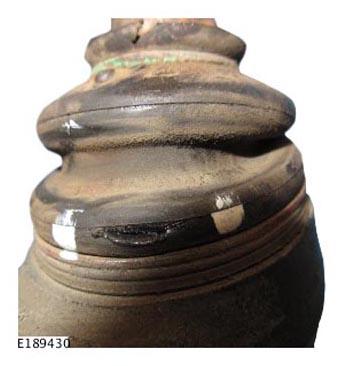

Check for split boots. Check for repair marks on tie rods.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

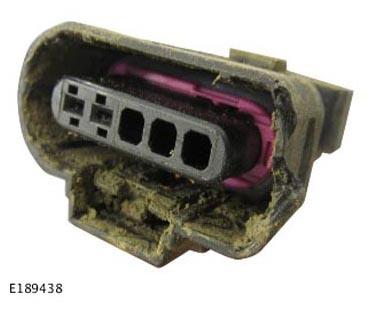

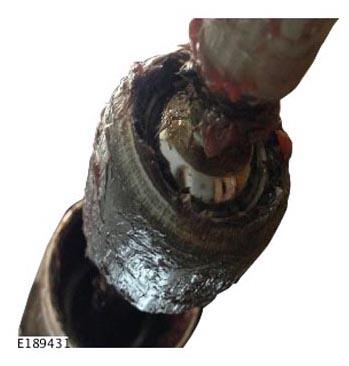

Is there evidence of water/debris into steering gear.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

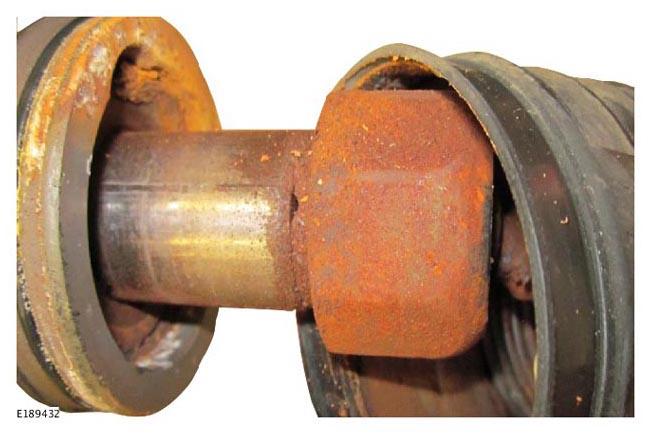

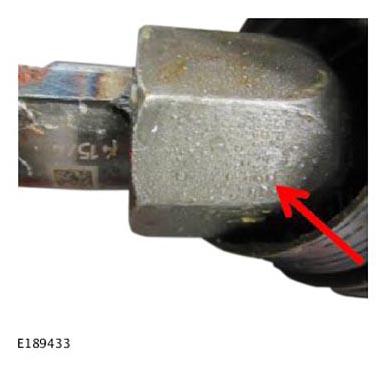

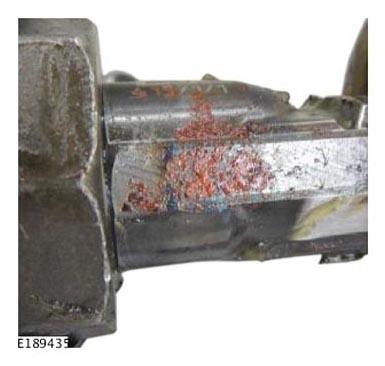

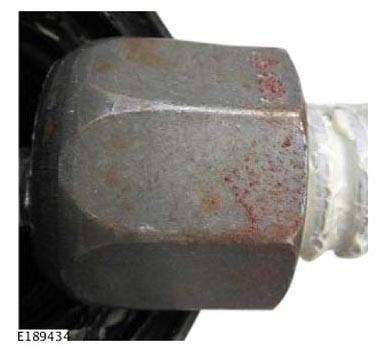

Check for Rust, condensation, and water deposits.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

ECU Damages

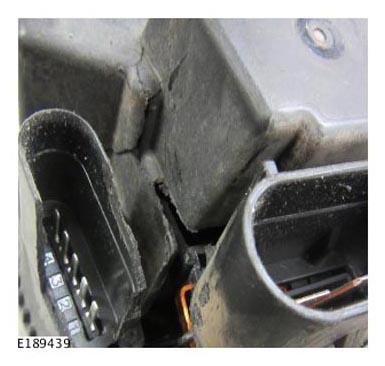

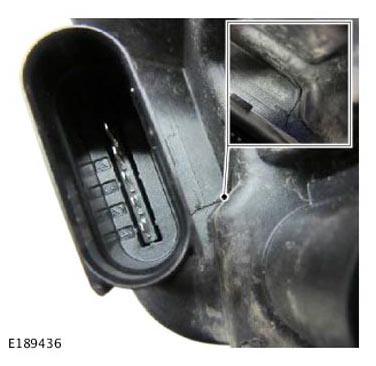

Check for cracks on PSCM housing.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

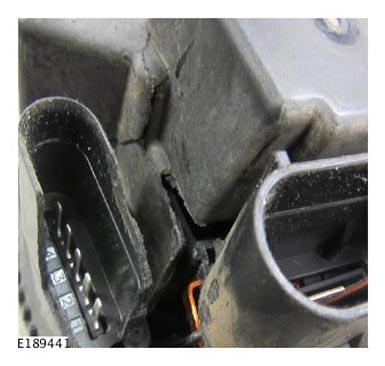

Check for scratches and damages on PSCM connectors and the steering gear.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Damage to Connector, Seals or Wiring

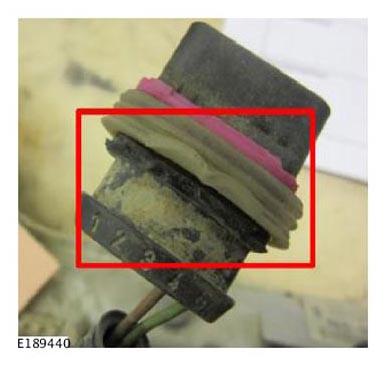

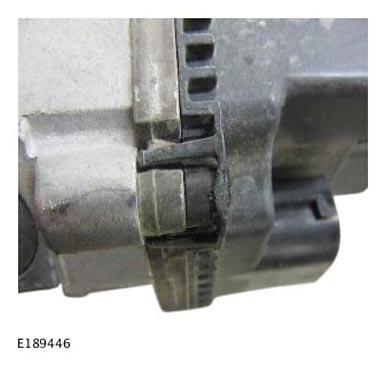

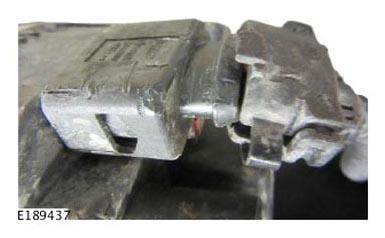

Is there evidence of damage to connector clips.

Check for removed/damaged connectors.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Check for Harness damage between ECU and Torque sensor.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Impact Damage to Motor/Gear Housing

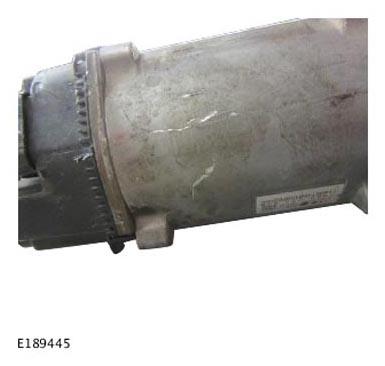

Check for evidence of impact on the motor/gear housing.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Check the alignment of the bolt between the housing and the motor and external damages on the motor housing that can alter belt tension.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Drain Plug (where fitted)

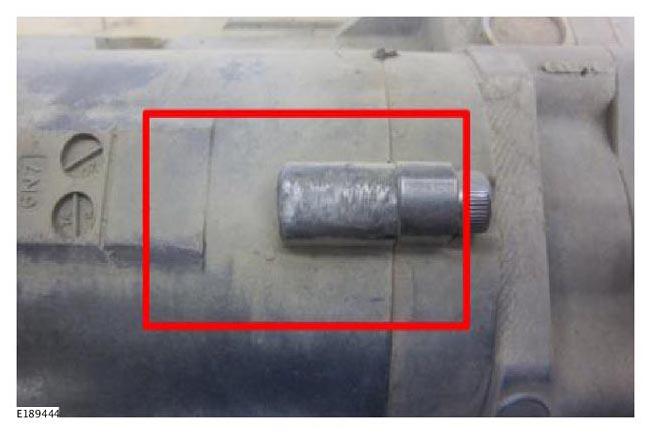

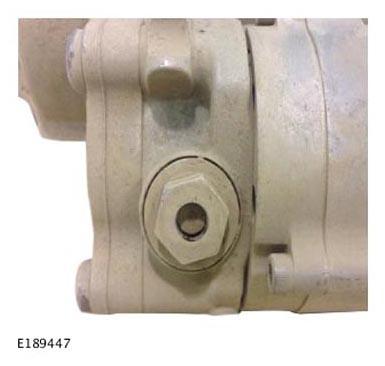

Is Water Drain Valve deployed?

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

If Water Drain Valve is deployed, that means water is inside the gear, check for damaged hoses and clips.

Damage of Seat Material

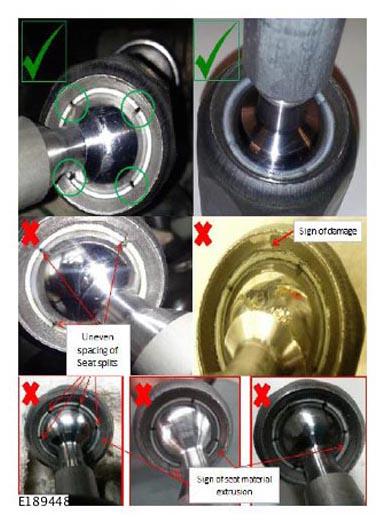

Is there evidence of damage to seat material?

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Damage to Tie Rod

Is there evidence of tie rod bending?

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

If there is heavy steering and bent tie rod there is a clear indication that the vehicle was subjected to heavy impacts.

Damage to Ball Joint

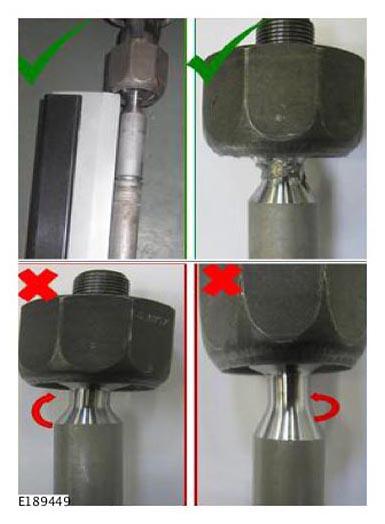

Is there evidence of damage to ball joints?

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
