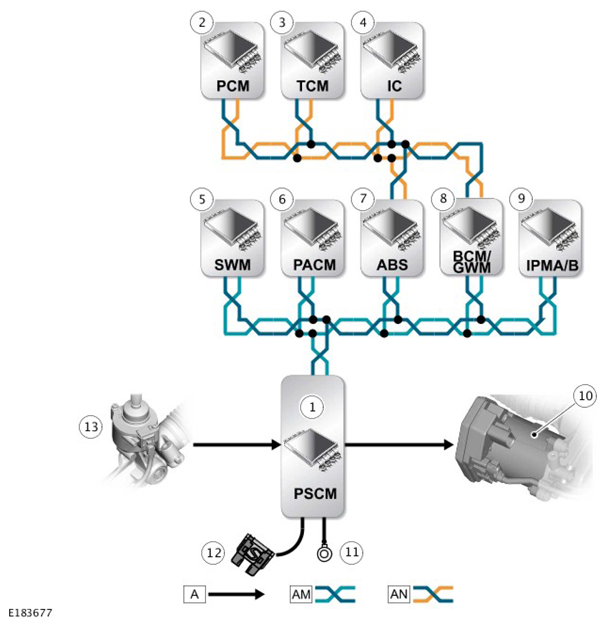

Input/Output Diagram
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED, AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS, AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS
| ITEM | DESCRIPTION |
|---|---|
| 1 | Power Steering Control Module (PSCM) |
| 2 | Powertrain Control Module (PCM) |
| 3 | Transmission Control Module (TCM) - if equipped |
| 4 | Instrument Cluster (IC) |
| 5 | Steering Wheel Module (SWM) |
| 6 | Parking Aid Control Module (PACM) - if equipped |
| 7 | Anti-lock Brake System (ABS) control module |
| 8 | Body Control Module/Gateway Module BCM/GWM assembly |
| 9 | Image Processing Module (IPMA/B) |
| 10 | Electric motor |
| 11 | Ground |
| 12 | Power supply |
| 13 | Torque sensor |
