Torque Specifications

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

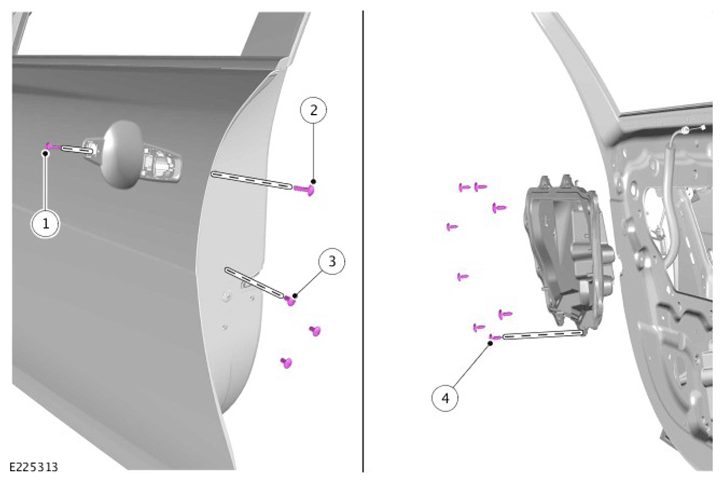

1	Front exterior door handle separate screw	3.2	-	28
2	Front exterior door handle bolt/Door lock captive bolt	4.1	-	36
3	Front door latch bolt	7	-	62
4	Front closing panel screws	5	-	44.2

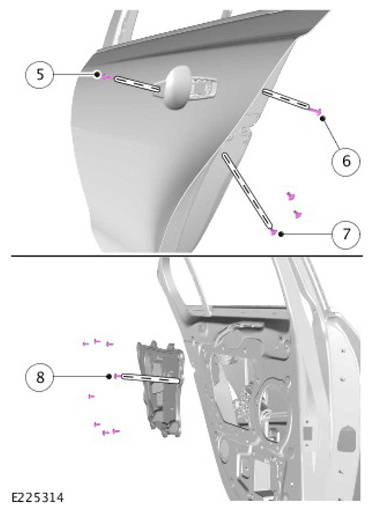

5	Rear exterior door handle separate screw	3.2	-	28
6	Rear exterior door handle bolt	4.1	-	36
7	Rear door latch bolt	7	-	62
8	Rear closing panel screws	5	-	44.2

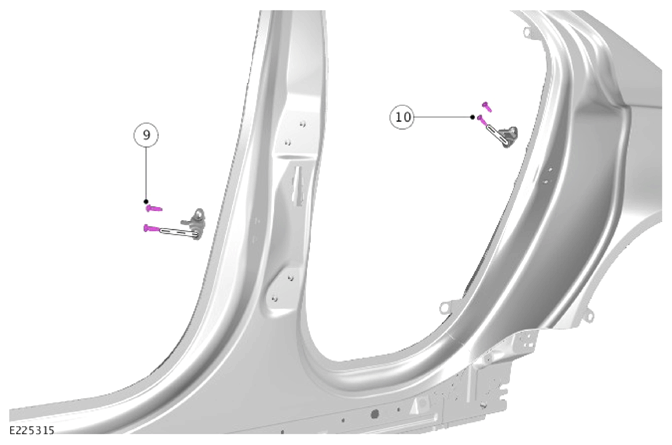

9	Front door striker bolt	25	18	-
10	Rear door striker bolt	25	18	-

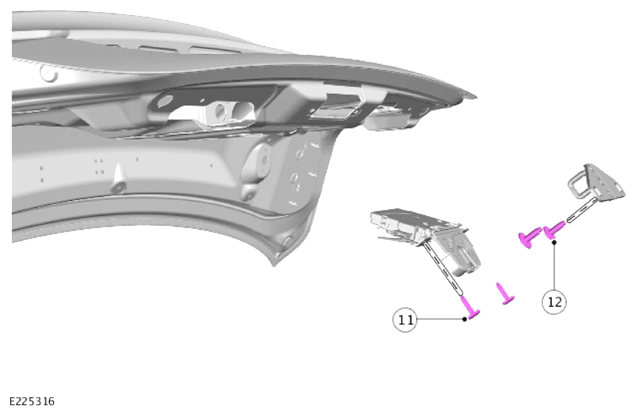

11	Luggage compartment lid latch retaining bolt	10	8	-
12	Luggage compartment lid striker retaining bolt	22	17	-

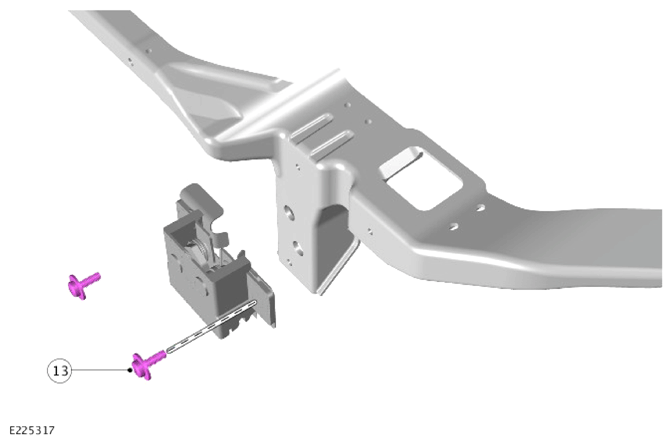

13	Hood latch bolts	10	8	-

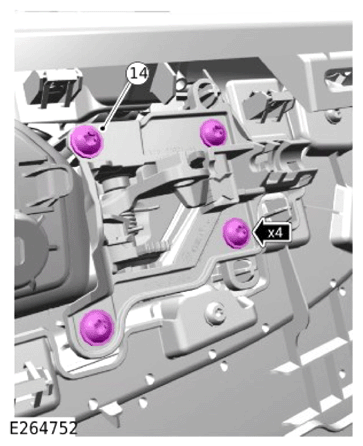

14	Interior front door handle	2.5	-	22.1
