Rear Door Latch (G1818508): Notes

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
86.25.68 REAR DOOR LOCK MOTOR AND LATCH ASSEMBLY - RENEW LWB 0.70
G14011498Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

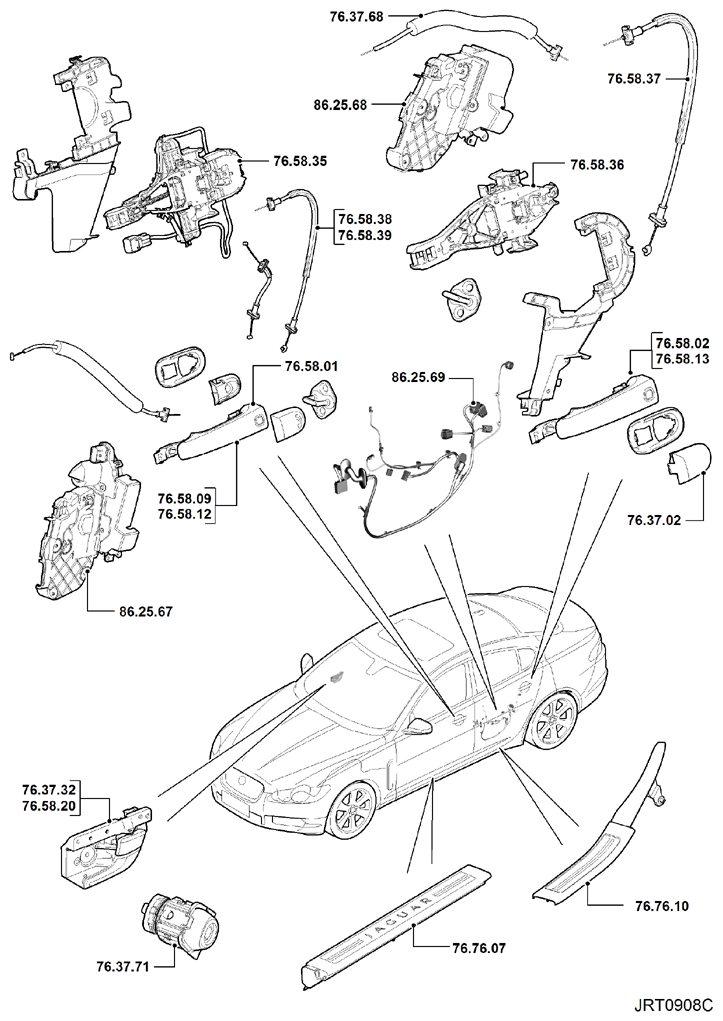

86.25.68 REAR DOOR LOCK MOTOR AND LATCH ASSEMBLY - RENEW SWB 0.60
G14011499Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
