Luggage Compartment Lid Latch Actuator - Project 8 (G2248425): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Remove the luggage compartment lid trim panel.
Refer to: LUGGAGE COMPARTMENT LID TRIM PANEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the luggage compartment lid manual release cable.
- Remove the access cover.
- Replace the adhesive tape.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

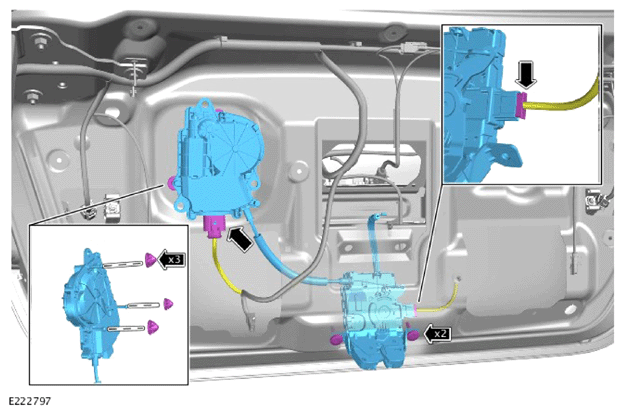

- Disconnect the 2 electrical connectors.
- Remove the 2 bolts.
- Release the luggage compartment lid latch actuator from the 3 rubber clips.
- Remove the luggage compartment lid latch and the luggage compartment lid latch actuator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

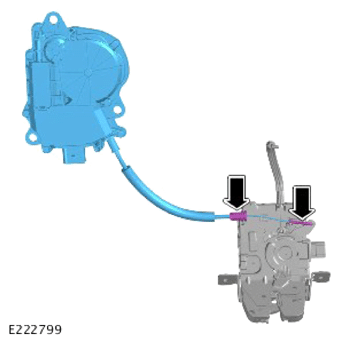

- Release the luggage compartment lid latch actuator cable from the luggage compartment lid latch.
- Remove the luggage compartment lid latch actuator.
