Luggage Compartment Lid Latch Actuator (G1818506): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: LUGGAGE COMPARTMENT LID LATCH

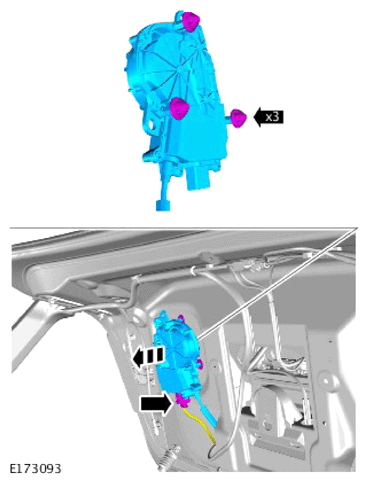

  2. G14011478Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
