Luggage Compartment Lid Latch - Project 8 (G2248424): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the luggage compartment lid latch actuator cable to the luggage compartment lid latch.
  2. Install the luggage compartment lid latch and the luggage compartment lid latch actuator.

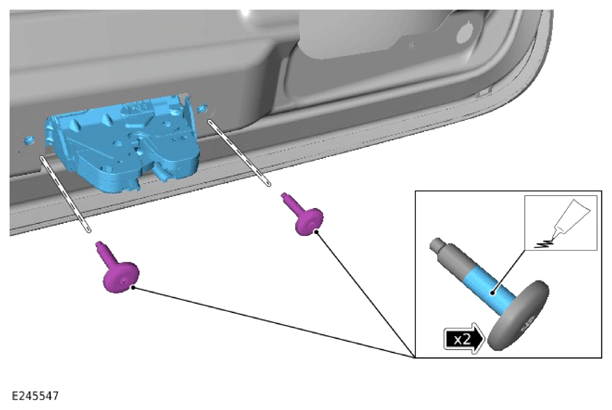

  3. G14011491Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Apply Loctite® 242 to the 2 bolts.
    • Install and tighten the 2 bolts.

      Torque  : 10Nm

    • Install the access cover.
    • Install the luggage compartment lid manual release cable.
  5. Install the luggage compartment lid trim panel.

    Refer to: LUGGAGE COMPARTMENT LID TRIM PANEL
