Hood Latch (G2230892): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Open the hood.
  2. G14011472Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the left hood latch release cables.
    • Remove the retaining bolts.
    • Remove the left hood latch.

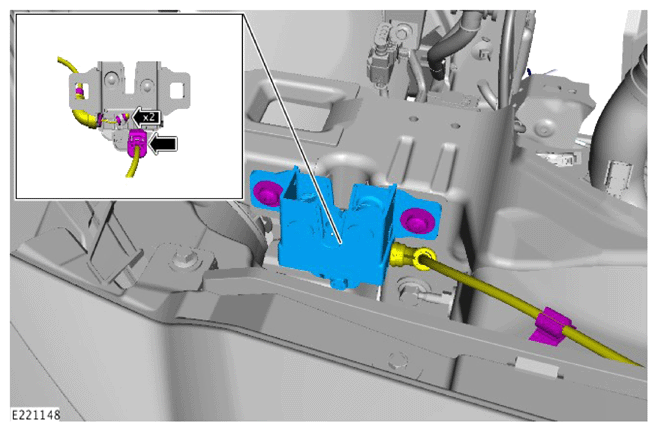

  3. G14011473Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the right hood latch release cable.
    • Remove the retaining bolts.
    • Disconnect the electrical connector.
    • Remove the right hood latch.
