Front Door Lock Cylinder (G1818504): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Protect the surrounding paintwork to avoid damage.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

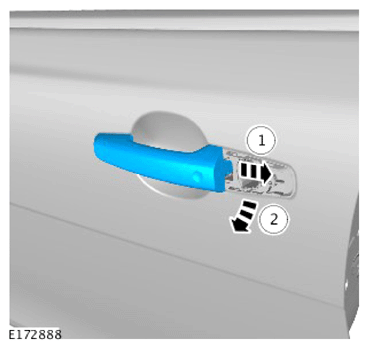

Use a suitable tool to remove the door lock cylinder cover.

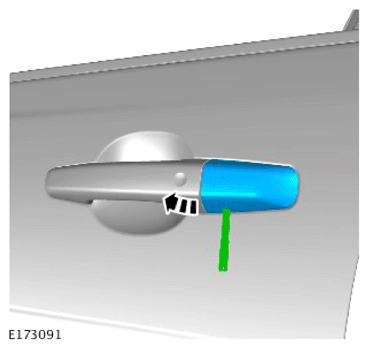

NOTE: Loosen the bolt, but do not fully remove.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

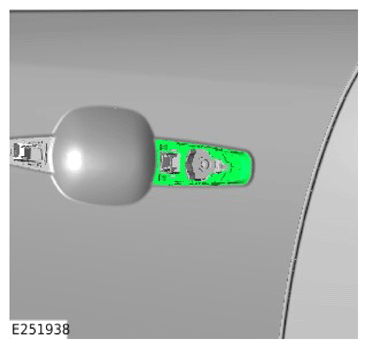

- Remove the access cover.
- Loosen the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

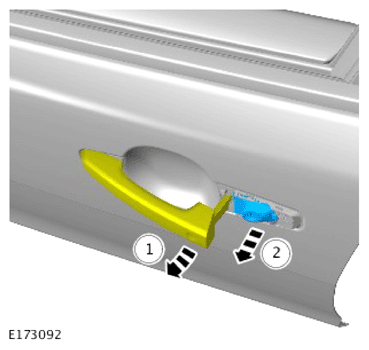

- Position the door handle as illustrated.
- Remove the door lock cylinder.
CAUTION: Wiring harness is still connected to the exterior door handle at this step.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

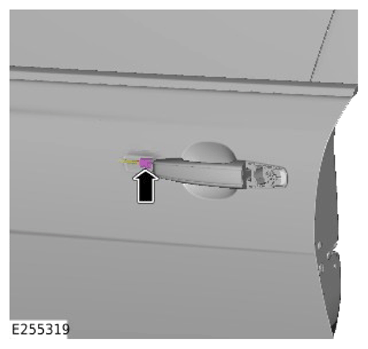

Remove the exterior front door handle.
NOTE: Partial removal of the exterior door handle prior to full removal is required to gain access to the electrical connector.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

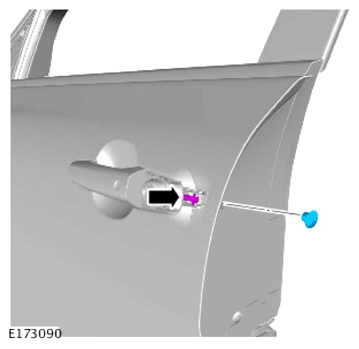

Disconnect the electrical connector before fully removing the door handle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the door lock cylinder gasket.
