Front Door Latch (G1818503): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach the front door interior handle release cable.
    • Attach the door lock cables to the door latch.
    • Attach the exterior handle cables to the door latch.
  3. Install the lower cover.
  4. Install the upper cover.
  5. Install the 2 boots.
  6. Install the front door latch assembly.

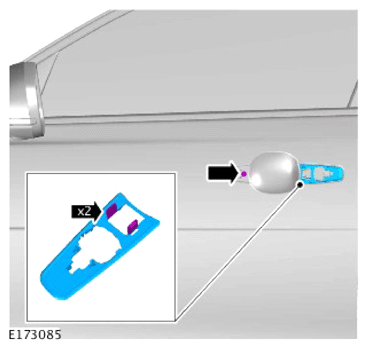

  7. G14011456Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install and tighten the screw.

      Torque  : 3.2Nm

    • Install the gasket.
    • Connect the 2 electrical connectors.
    • Install the wiring harness clip.

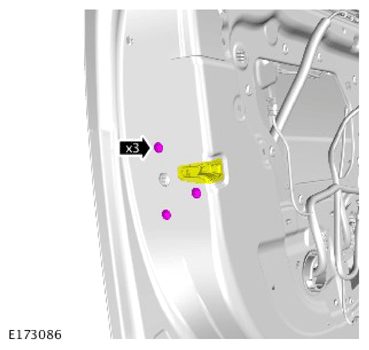

  9. G14011457Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 3 bolts.

    Torque  : 7Nm

  10. Install the front door trim panel.

    Refer to: FRONT DOOR TRIM PANEL

  11. Install the exterior front door handle.

    Refer to: EXTERIOR FRONT DOOR HANDLE

  12. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
