Smart Key Housing Renew (G2920432): Repair

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

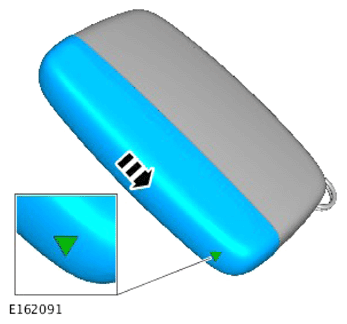

Remove the chrome cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

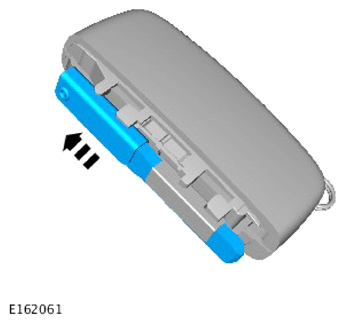

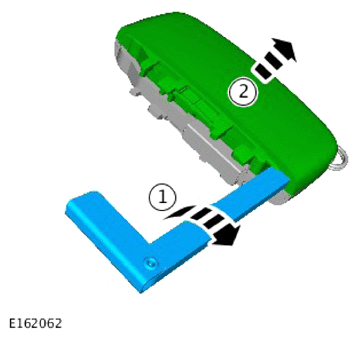

Remove the key blade.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the key blade, remove and discard the cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the battery.
CAUTION: Care must be taken to make sure the Printed Circuit Board (PCB) is not damaged when removing the cover. If the copper coil antenna is damaged the unit will be unserviceable.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

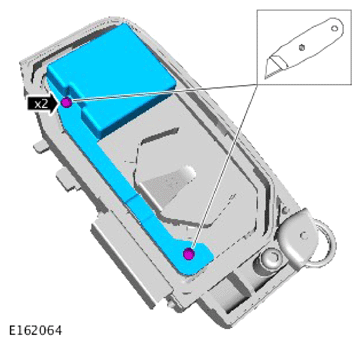

Use a suitable tool to cut the fixings of the black anti tamper cover and lift away from the Printed Circuit Board (PCB).
CAUTION: When removing the PCB only touch the outer edges of the board.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

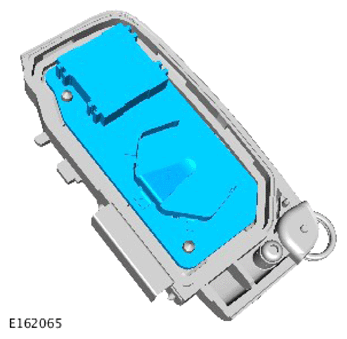

Remove the PCB.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

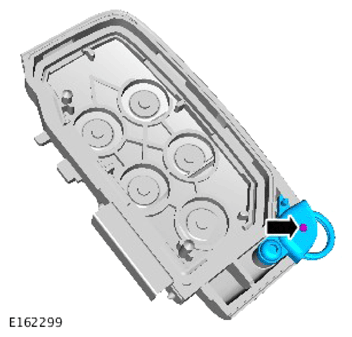

- Remove the screw.
- Remove the key ring.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

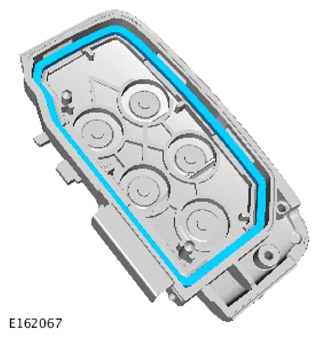

Remove the silicone seal from the lower case and discard the case.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

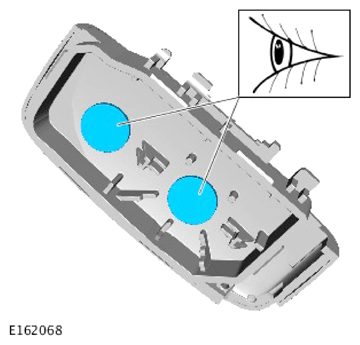

Visually check that the foam pads are installed on the new back cover as illustrated.

Renew Part: Smart key cover kit - Land Rover (shiny backed) Quantity: 1 . Part Number: LR059382

Renew Part: Smart key cover kit - Range Rover (shiny backed) Quantity: 1 . Part Number: LR059383

Renew Part: Smart key cover kit - Range Rover (matt backed) Quantity: 1 . Part Number: LR059384

Renew Part: Smart key cover kit - Jaguar Quantity: 1 . Part Number: C2D49498
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the silicone seal into the new lower case.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

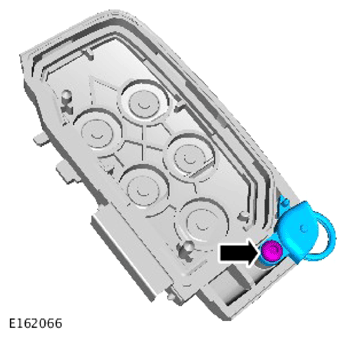

- Install the key ring.
- Install and tighten the screw.
  Torque : 1Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

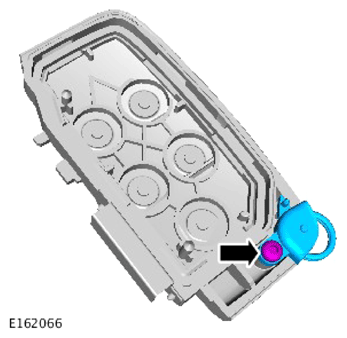

Make sure the key ring pin is present.
CAUTION: When installing the Printed Circuit Board (PCB) only touch the outer edges of the board.

NOTE: The PCB and cover are held in position with the foam pads on the new cover.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the PCB.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

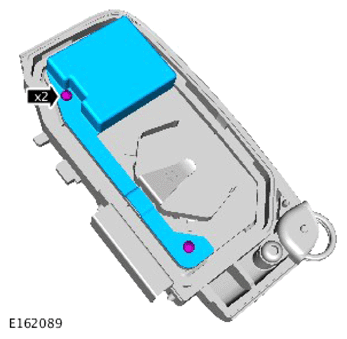

Install the PCB anti tamper cover.
NOTE: Make sure the battery is installed positive side up.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

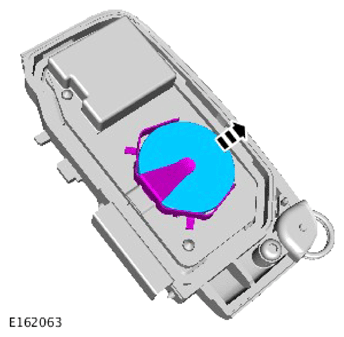

Install the battery.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

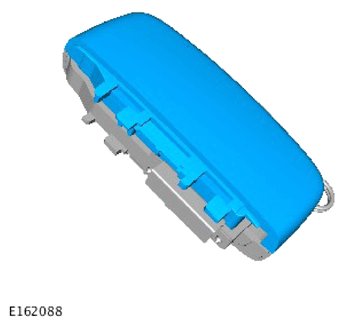

Install the cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

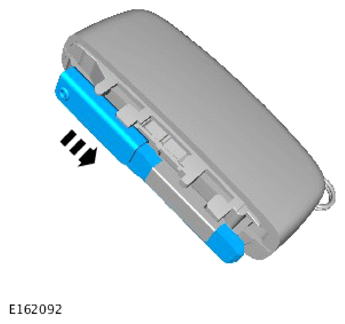

Install the key blade.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

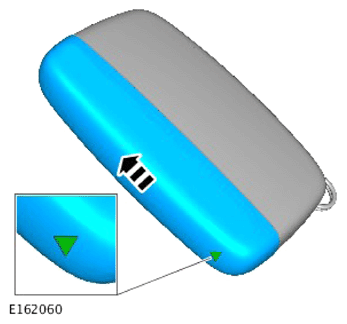

Install the chrome cap.
Check the operation of the smart key.
