Pinpoint Test C: Door Ajar Tests

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. C1: DOOR AJAR TEST 1
    1. Open the door.
    2. Using a suitable tool, close the door latch claw to the Primary (fully latched) position.
    3. Set the ignition to on.
    4. Check the message center for a 'DOOR OPEN' message.

    Does the message center indicate that the door is open?

    Yes

    GO to  C2.

    No

    Adjust the door striker outwards by 1 mm. Check that panel flushness has not been affected by this adjustment. Refer to: BODY AND FRAME COMPONENT DIMENSIONS Retest.

  2. C2: DOOR AJAR TEST 2
    1. Remove the interior door trim as necessary. REFER to:

      FRONT DOOR TRIM PANEL

      REAR DOOR TRIM PANEL

      G14011365Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    2. Check the door latch electrical connector for correct installation.

    Is the door latch electrical connector installed correctly?

    Yes

    GO to  C3.

    No

    Install the door latch electrical connector correctly, then GO to  C7. to confirm successful repair.

  3. C3: DOOR AJAR TEST 3
    G14011366Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the door latch electrical connector.
    2. Check the door latch electrical connector terminals for damage and corrosion.

    Are the door latch electrical connector terminals damaged/corroded?

    Yes

    Repair the door latch electrical connector or install a new door latch as necessary. REFER to:

    FRONT DOOR LATCH

    REAR DOOR LATCH

    No

    GO to  C4.

  4. C4: DOOR AJAR TEST 4
    NOTE: Make sure that the door latch claw remains in the Primary (fully latched) position during this test.

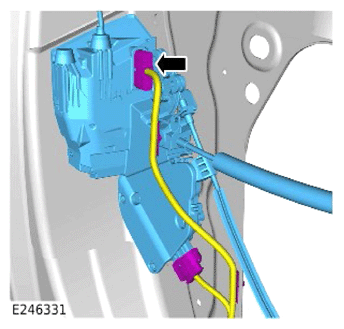

    G14011367Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Reconnect the door latch electrical connector.
    2. Set the ignition to on.
    3. Check the message center for a 'DOOR OPEN' message.

    Does the message center indicate that the door is open?

    Yes

    GO to  C5.

    No

    GO to  C7.

  5. C5: DOOR AJAR SWITCH TEST
    NOTE: Make sure that the door latch claw remains in the Primary (fully latched) position during this test.
    G14011368Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the door latch electrical connector.
      NOTE: This step applies when testing the front left  or rear left  door.
    2. On the latch side terminal, check for open circuit, high resistance between pins 3 and 4 of the latch connector socket.
      NOTE: This step applies when testing the front right  or rear right  door.
    3. On the latch side terminal, check for open circuit, high resistance between pins 6 and 5 of the latch connector socket.

    Did the continuity test reveal any open circuit, high resistance faults in any of the door latches?

    Yes

    Install a new door latch as necessary. REFER to:

    FRONT DOOR LATCH

    and REAR DOOR LATCH

    No

    GO to  C6.

  6. C6: DOOR AJAR SWITCH HARNESS TEST
    NOTE: Make sure that the door latch claw remains in the Primary (fully latched) position during this test.
    G14011369Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the door latch electrical connector.
      NOTE: This step applies when testing the front left  or rear left  door.
    2. Using a suitable link wire, temporarily connect terminal 3 of the wiring harness connector to terminal 4 of the wiring harness connector.
      NOTE: This step applies when testing the front right  or rear right  door.
    3. Using a suitable link wire, temporarily connect terminal 6 of the wiring harness connector to terminal 5 of the wiring harness connector.
    4. Check the message center for a 'DOOR OPEN' message.

    Does the message center indicate that the door is open?

    Yes

    Refer to the electrical circuit diagrams and check the door ajar switch circuit for open circuit, high resistance. Repair the wiring harness as necessary.

    No

    Install a new door latch as necessary. REFER to:

    FRONT DOOR LATCH

    and REAR DOOR LATCH

  7. C7: DOOR AJAR TEST - SUCCESSFUL REPAIR CHECK
    G14011370Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Reconnect the door latch electrical connector.
    2. Check the operation of the door ajar switch:
      • Close the door.
        NOTE: A DOOR OPEN message should not be displayed.
      • Check the message center for a DOOR OPEN message.
      • Open the door.
        NOTE: A DOOR OPEN message should be displayed.
      • Check the message center for a DOOR OPEN message.
    3. Perform step  2 a total of five times.

    Did the door ajar switch function correctly?

    Yes

    Repair complete.

    No

    Raise a Technical Assistance (TA) to seek further guidance.
