Emergency Key Barrel Cover Adrift

A customer may express concern that the emergency key barrel cover has become adrift. This may be caused by insufficient retaining features on the front exterior door handle gasket, which requires replacement. Should a customer express this concern, follow the service instruction below:

For a detailed description of the emergency key barrel, refer to the relevant Description and Operation article in the repair information. Refer to: HANDLES, LOCKS, LATCHES AND ENTRY SYSTEMS

WARRANTY

Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Use the RTS article of the repair information to obtain the latest repair time.

The JLR claims submission system requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

1. Remove the front exterior door handle, Refer to: EXTERIOR FRONT DOOR HANDLE

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

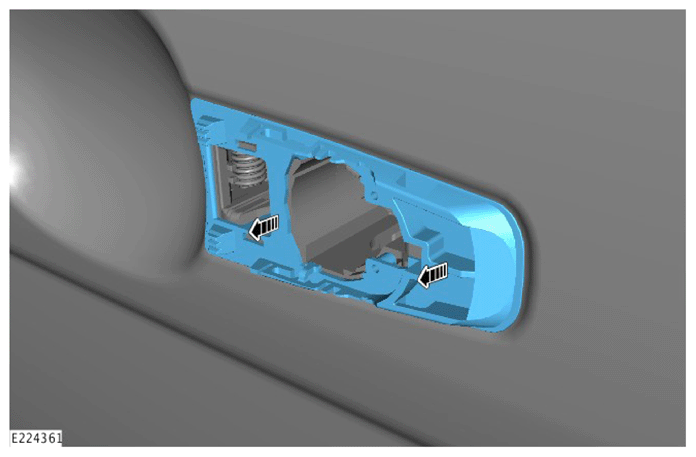

2. Remove the front exterior door handle gasket (as shown above).

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   NOTE: Discovery vehicle models in the UK are installed with key barrel covers on BOTH sides of the vehicle, be sure to order the correct barrel cover required.
3. Install the new front exterior door handle gasket (as shown above).
4. Install the front exterior door handle, Refer to: EXTERIOR FRONT DOOR HANDLE
5. Install a new emergency key barrel cover.
