Emergency Locking

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not leave the emergency key in the vehicle at any point during the emergency locking procedure.

In the event of the startup battery discharging, or a fault with the locking system, each of the doors must be locked manually. The emergency key is required for this procedure and is located in the smart key.

Emergency Locking Procedure

NOTE: Some variation in the illustration may occur, but the essential information is always correct.

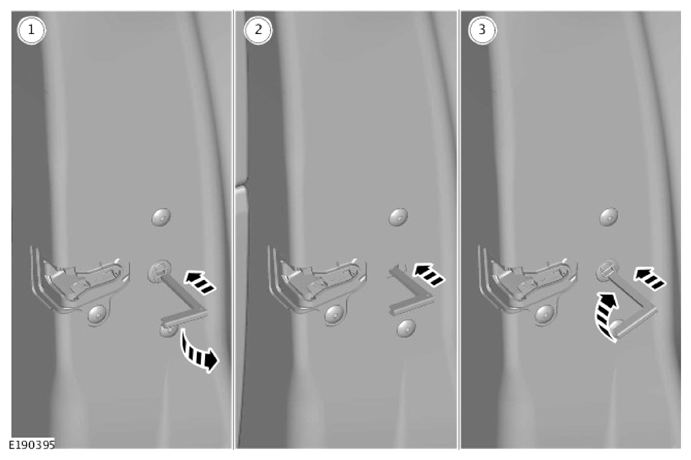

G14011359Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  1. Open a door and locate the emergency lock access cover on the edge of the door. The cover has an embossed lock icon. Insert the emergency key into the cover's slot. Rotate the cover counter-clockwise to first release it, then pull to remove the cover from the door. Keep the lock access cover safe.
  2. Insert the emergency key firmly into the emergency lock. A firm push activates the door's locking mechanism. Remove the emergency key.
  3. Refit the emergency lock access cover and rotate it clockwise to secure it firmly.
  4. Close the door and check that it is locked.

Repeat the procedure for all other unlocked doors.
