Central Door Locking Interior Switches

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

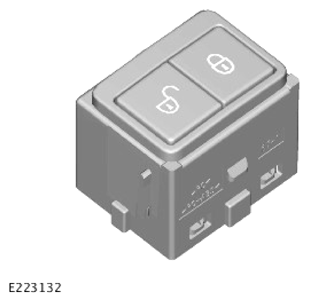

G14011357Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Lock and unlock switches located in the front door trim panels allow the door latches to be activated from inside the vehicle. The switches incorporate a 'locked' status indicator Light Emitting Diode (LED). The status indicator LED is controlled by the related door module, that illuminates whenever the respective door is locked.

When a Central Door Locking (CDL) lock/unlock switch is operated, the door module on the activated door transmits the central lock/unlock request. The door module is connected to the High Speed (HS) Controller Area Network (CAN) body systems bus. The door module transmits the lock/unlock request to the Body Control Module/Gateway Module (BCM/GWM) on the HS CAN body systems bus. The BCM/GWM then transmits the central lock/unlock command to all the vehicle door control modules to lock/unlock all the vehicle doors.
