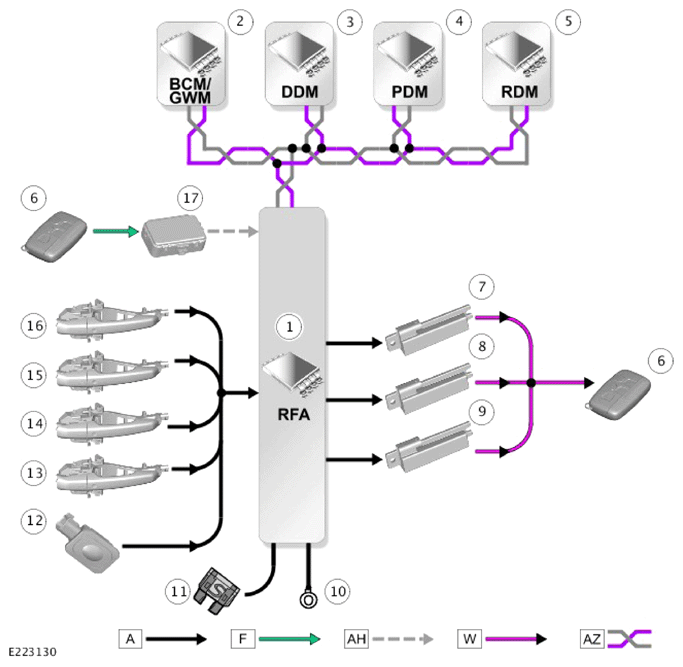

Control Diagram - 3 Of 3 - Passive Entry System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: F = RADIO FREQUENCY (RF) TRANSMISSION: AH = SERIAL COMMUNICATION LINE: W = LOW FREQUENCY (LF) TRANSMISSION: AZ = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Remote Function Actuator (RFA) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Driver Door Module (DDM) |
| 4 | Passenger Door Module (PDM) |
| 5 | Rear Door Module (RDM) (2 off) |
| 6 | Smart key |
| 7 | Low Frequency (LF) antenna - Luggage compartment |
| 8 | LF antenna - Floor console - Front |
| 9 | LF antenna - Floor console - Rear |
| 10 | Ground |
| 11 | Power supply |
| 12 | Luggage compartment lid exterior release switch |
| 13 | Passive entry sensor - Rear right exterior door handle |
| 14 | Passive entry sensor - Front right exterior door handle |
| 15 | Passive entry sensor - Rear left exterior door handle |
| 16 | Passive entry sensor - Front left exterior door handle |
| 17 | Radio Frequency (RF) receiver |
