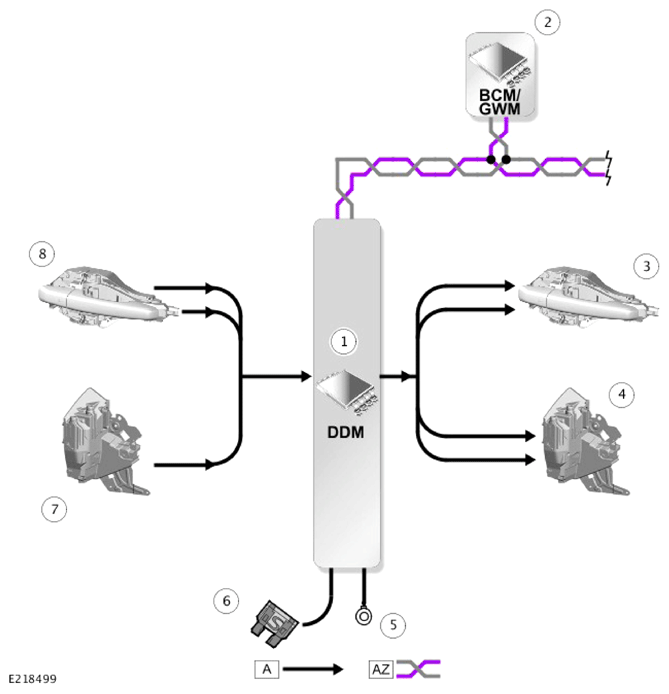

Control Diagram - 2 Of 3 - Door Latches
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver door shown, the other door latches are similar.
A = HARDWIRED: AZ = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Driver Door Module (DDM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Central Door Locking (CDL) motor |
| 4 | Ground |
| 5 | Power supply |
| 6 | CDL lock/unlock switch |
| 7 | Door latch ajar switch and status switch |
