Component Location - 4 Of 4 - Passive Entry

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

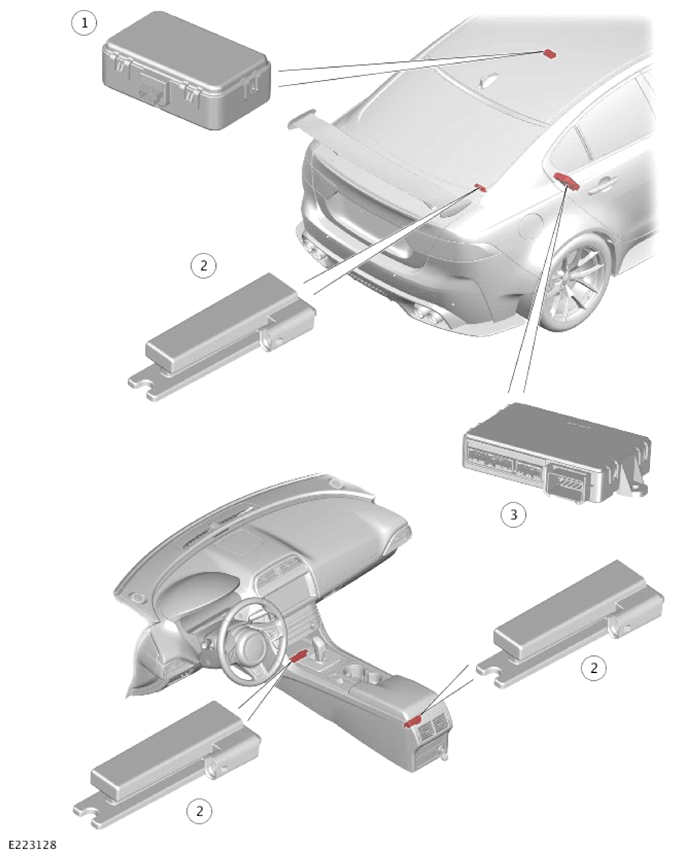

G14011351Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Radio Frequency (RF) receiver
2 Low Frequency (LF) antenna (3 off)
3 Remote Function Actuator (RFA)
