Component Location - 3 Of 4

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

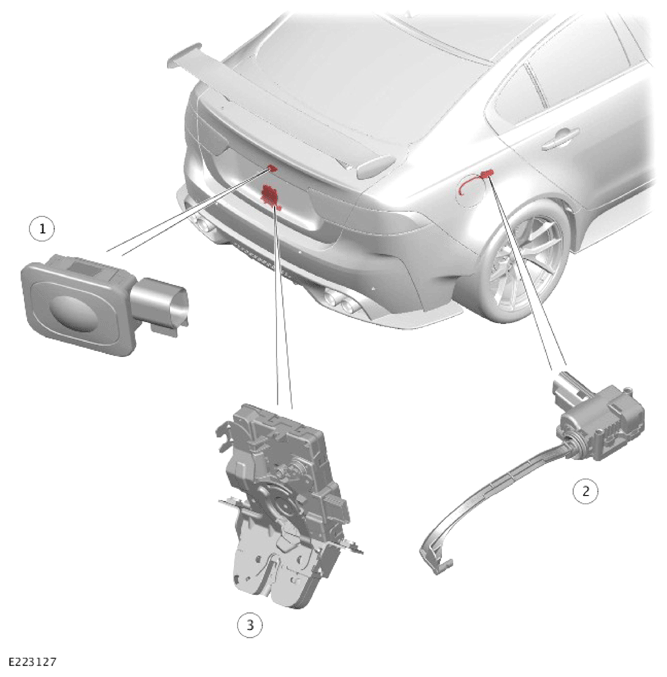

G14011350Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Luggage compartment lid exterior release switch
2 Fuel flap release motor
3 Luggage compartment lid latch
