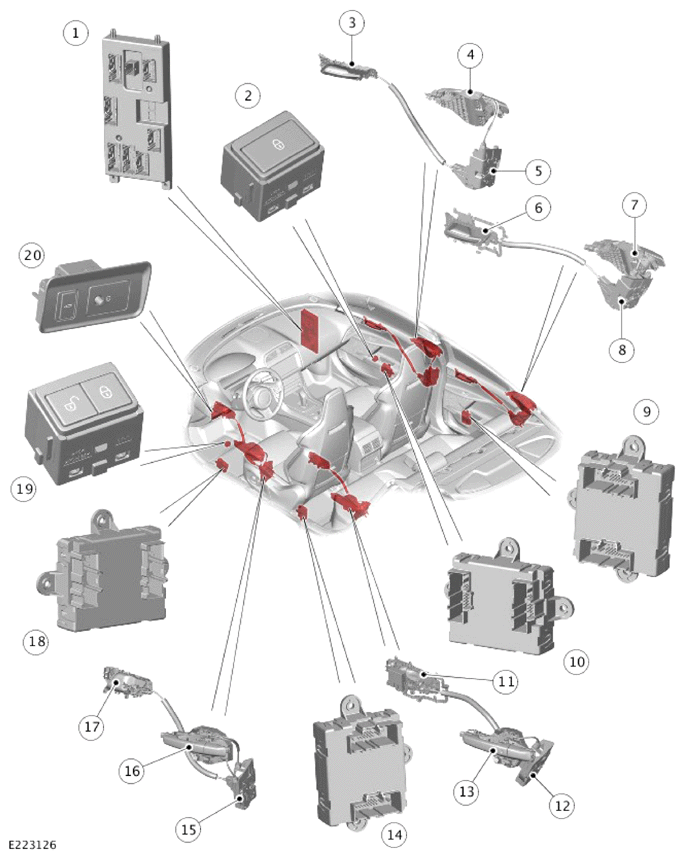

Component Location - 2 Of 4 - Central Door Locking System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) |
| 2 | Central Door Locking (CDL) lock switch - Passenger door |
| 3 | Interior door handle - Passenger door |
| 4 | Exterior door handle - Passenger door |
| 5 | Passenger door latch |
| 6 | Interior door handle - Rear right door |
| 7 | Exterior door handle - Rear right door |
| 8 | Rear right door latch |
| 9 | Rear Door Module (RDM) - Right |
| 10 | Passenger Door Module (PDM) |
| 11 | Interior door handle - Rear left door |
| 12 | Rear left door latch |
| 13 | Exterior door handle - Rear left door |
| 14 | RDM - Left |
| 15 | Driver door latch |
| 16 | Exterior door handle - Driver door |
| 17 | Interior door handle - Driver door |
| 18 | Driver Door Module (DDM) |
| 19 | CDL lock/unlock switch - Driver door |
| 20 | Auxiliary lighting switchpack |
