Component Location - 1 Of 4 - Hood Release

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

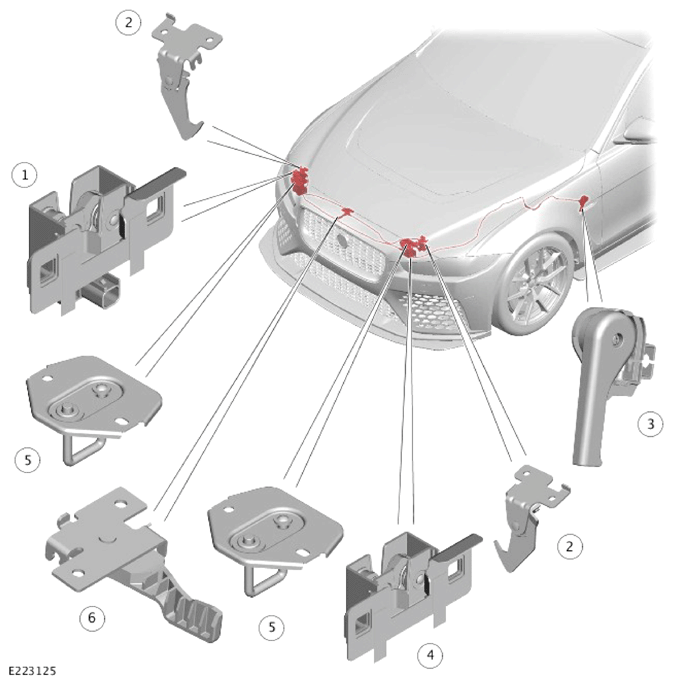

G14011348Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Hood latch with hood switch
2 Hook (2 off)
3 Hood release lever
4 Hood latch
5 Striker
6 Hood lever
