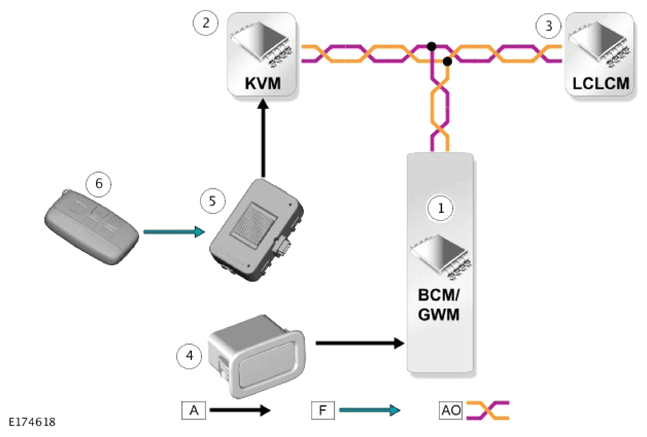

Input/Output Diagram - Sheet 5 Of 5 - Power Luggage Compartment Lid Opening
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AO = MS CAN BODY SYSTEMS BUS; F = RADIO FREQUENCY (RF) TRANSMISSION.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) |
| 2 | Keyless Vehicle Module (KVM) |
| 3 | Luggage Compartment Lid Control Module (LCLCM) |
| 4 | Luggage Compartment Lid unlock switch - Auxiliary lighting switch |
| 5 | Radio Frequency (RF) receiver |
| 6 | Smart key |
