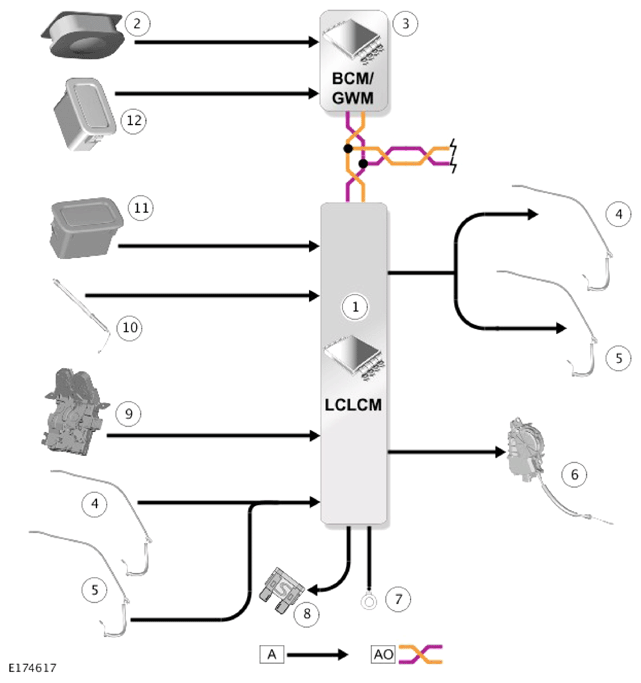

Input/Output Diagram - Sheet 4 Of 5- Luggage Compartment Lid
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AO = MS CAN BODY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Luggage Compartment Lid Control Module (LCLCM) |
| 2 | Luggage compartment lid open switch |
| 3 | Body Control Module/Gateway Module (BCM/GWM) |
| 4 | Left tailgate anti-trap sensor |
| 5 | Right tailgate anti-trap sensor |
| 6 | Luggage compartment lid closing motor |
| 7 | Ground |
| 8 | Permanent power feed |
| 9 | Luggage compartment lid latch |
| 10 | Luggage compartment lid actuator |
| 11 | Luggage compartment lid close switch - Luggage compartment lid finisher |
| 12 | Luggage compartment lid unlock switch - Auxiliary lighting switch |
