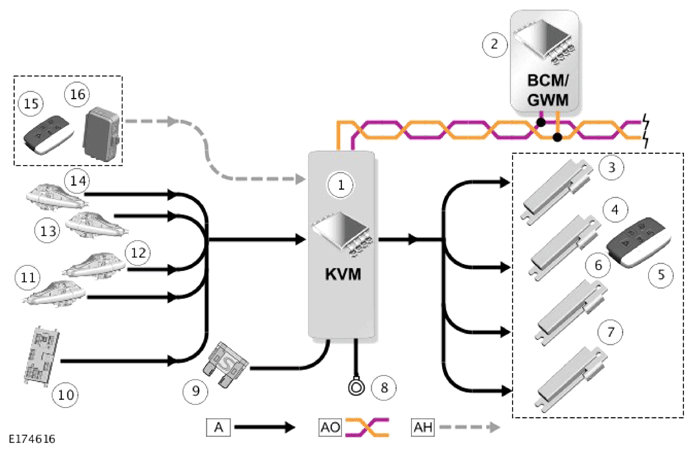

Input/Output Diagram - Sheet 3 Of 5 - Passive Entry System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AO = MS CAN BODY SYSTEMS BUS; AH = SERIAL COMMUNICATION LINE.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Keyless Vehicle Module (KVM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Low frequency (LF) antenna - On the instrument panel cross-car beam |
| 4 | Low frequency (LF) antenna - In the floor console |
| 5 | Smart key |
| 6 | Low frequency (LF) antenna - On the rear floor |
| 7 | Low frequency (LF) antenna - Under the rear bumper |
| 8 | Ground |
| 9 | Permanent power feed |
| 10 | Body Control Module/Gateway Module (BCM/GWM) |
| 11 | Front right exterior door handle - from lock and unlock switches |
| 12 | Rear right exterior door handle - from lock and unlock switches |
| 13 | Front left exterior door handle - from lock and unlock switches |
| 14 | Rear left exterior door handle - from lock and unlock switches |
| 15 | Smart key |
| 16 | Radio Frequency (RF) receiver |
